Model Setting: Case or Sumitomo excavator display panel

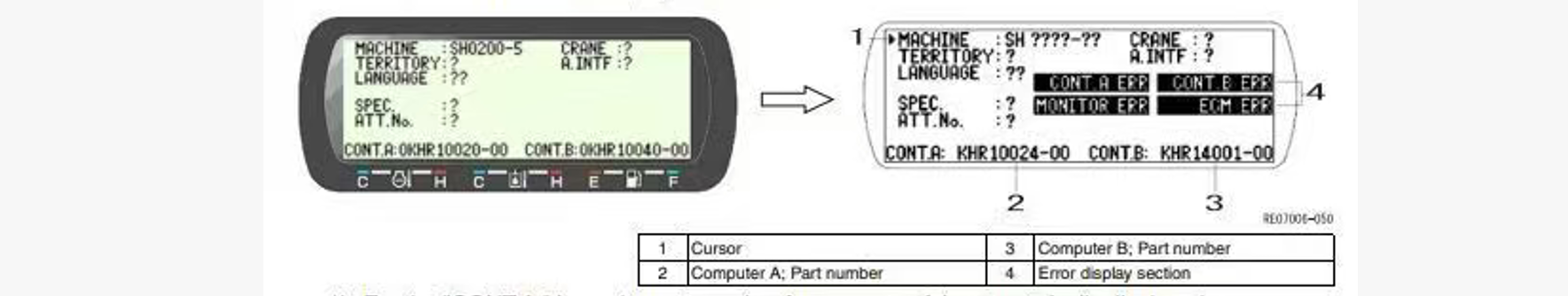

If the model selection has not been completed, immediately after the key is switched ON, the "Model select screen" is displayed.

1) For the "CONT.A:" item, the part number for computer A is automatically displayed.

2) In the same way, if computer B is connected (for the liftcrane specification or interference prevention specifications). the part number for computer B is automatically displayed for the CONT.B item.

3) A "?" displays for items in which input is required.

a) MACHINE: Model SH120-5, SH150-5, SH180-5, SH200-5, SH240-5, SH290-5, SH330-5)

b) TERRITORY: Destination (0: Domestic, general export, 1:LBX, 2:CASE NA, 3:CASE EU, 4: IHI)

c) LANGUAGE: Language 00: Japanese, 01: English, 02: Thai, 03: Chinese, 04: German,05: French, 06: Italian, 07: Spanish, 08: Portuguese, 09: Dutch,10: Danish, 11: Norwegian, 12: Swedish, 13: Finnish, 14: Turkish,15: Arabic, 16: Malay, 17: Indonesian, 18: Icon)

d) SPEC: Main unit specifications (input 0)

e) ATT.No.: Attachment specifications (input 0)

f) CRANE: 0: No liftcrane, 1: with liftcrane

g) A.INTF: 0: No interference prevention function, 1: with interference prevention function

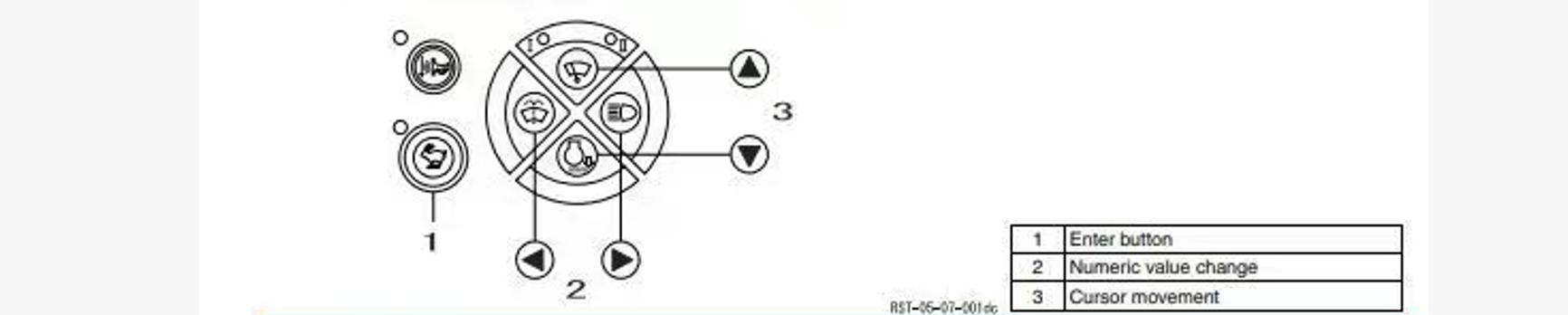

4) Input operating method Input by using the monitor switches as follows

* When the model select screen is displayed the monitor, the normal monitor switch functions do not work.

When the throttle volume position or all the input i complete, press (enter button). (The throttle volume must always be at the "H" mode position.) If the input value is inappropriate (), "CONT. A.ERR" is displayed

. When there is still an item let with "?" display or the combination of model, destination specification, and the like is inappropriate
