Operation Manual

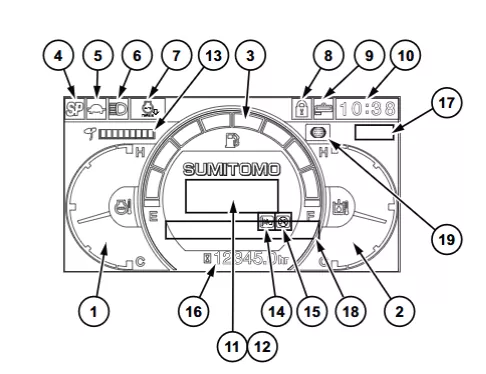

KHR41503 monitor (Instrument panel) is common use to CASE excavator CX-C series models CX80C CX130C CX145C CX160C CX210C CX220C CX235C CX250C CX300C CX350C CX470C, Sumitomo SH-6 series models SH80-6 SH130-6 SH210-6 SH220-6 SH260-6 SH300-6 SH360-6 SH380-6 SH460-6 SH480-6, Link-belt X3 series models. KHR41503 monitor and function control panel including:

• Excavator brand information
• Excavator model information
• Engine coolant temperature indicator
• Hydraulic oil temperature gauge
• Hydraulic oil temperature indicator reading
• Fuel indicator reading
• Working mode display
• Other attachments display

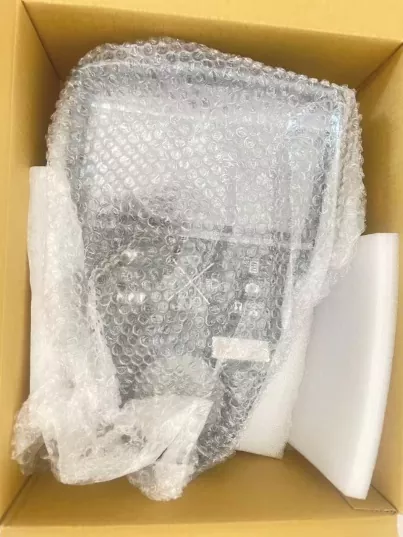

Packing

KHR41503 Monitor is packed in carefully to arrive in perfect condition.

• Inner Protection: Each monitor is individually wrapped in protective film or oil paper to prevent scratches and moisture damage.
• Secondary Packaging: The wrapped unit is placed into original Sumitomo & Case carton box with ample foam padding to absorb shock and vibration.
• Outer Packaging: The small carton is then packed into a sturdy standard export carton.

FAQ

Q: Can I get a product photo?

A: Yes, we would like to send you real product picture.

Q: Does it fit to my machine?

A: Please send me your machine nameplate or monitor number to me for checking.

Q: How can I order it?

A: I will send invoice with payment information via email.

Q: How do payment?

A: We accept to T/T, PayPal, Credit Card, Western Union transfer.

Q: What's the delivery time?

A: Stock products estimated 7 days.

Q: Do you offer warranty?

A: Yes, we offer 1-3 months warranty for OEM products in negotiation

Q: What is the machine's maintenance history?

A: Enter your case monitor maintenance interface, review past service records and major component rebuilds

Q: Does the monitor support my local language?

A: Yes, it available to setting languages such as English, Japanese, Chinese, Spanish, French, etc.

Q: Does this monitor match my specific CASE excavator?

A: KHR41503 monitor match Case Excavator CX-C series models, Sumitomo SH-6 series models

Q: Is the excavator monitor brand new, refurbished, or aftermarket, and has it been bench-tested before shipping?

A: It is genuine new monitor
