Constituent Part

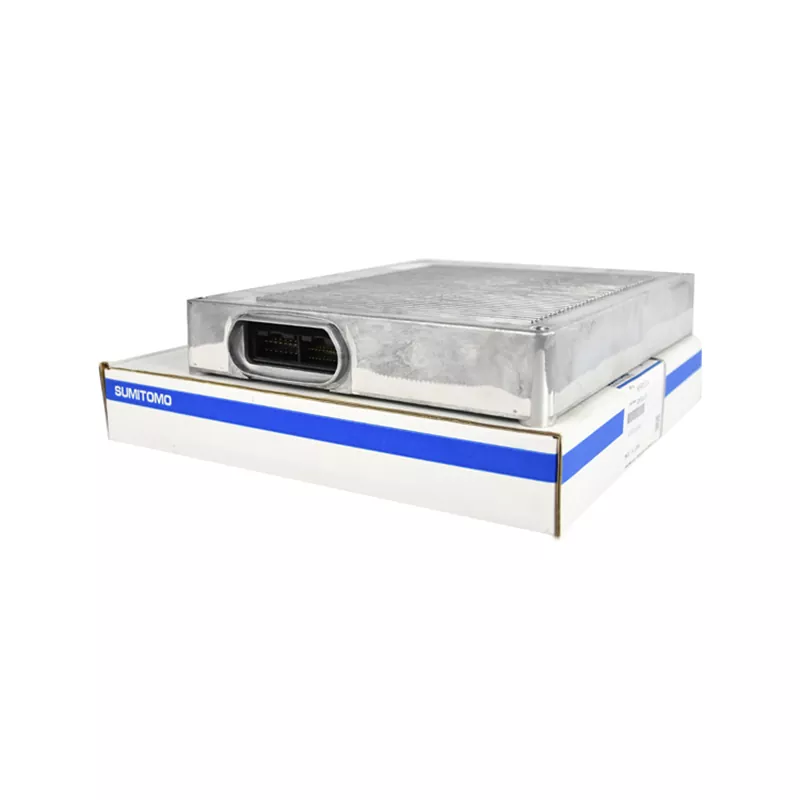

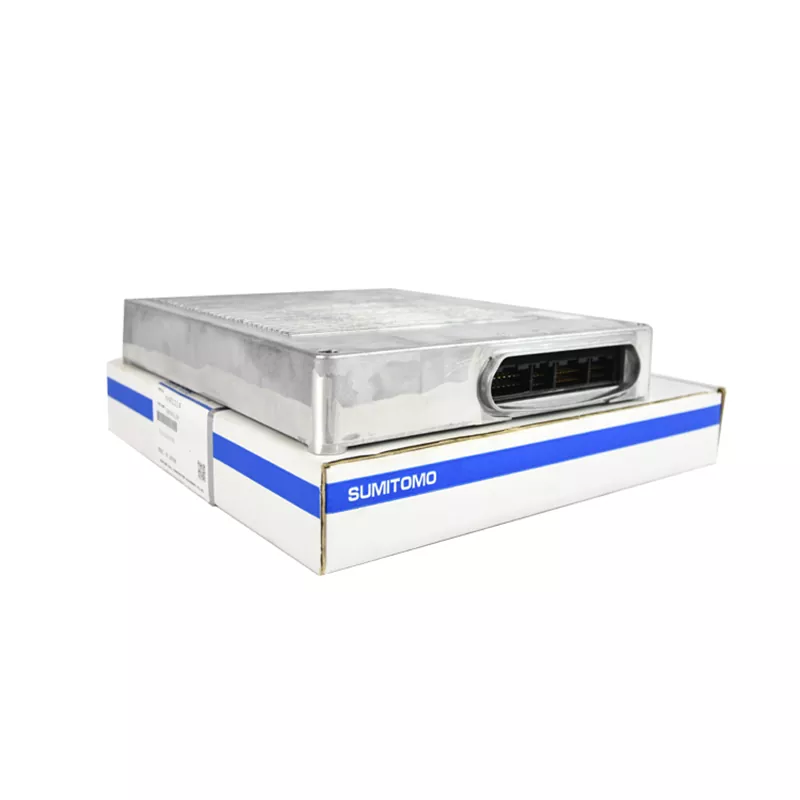

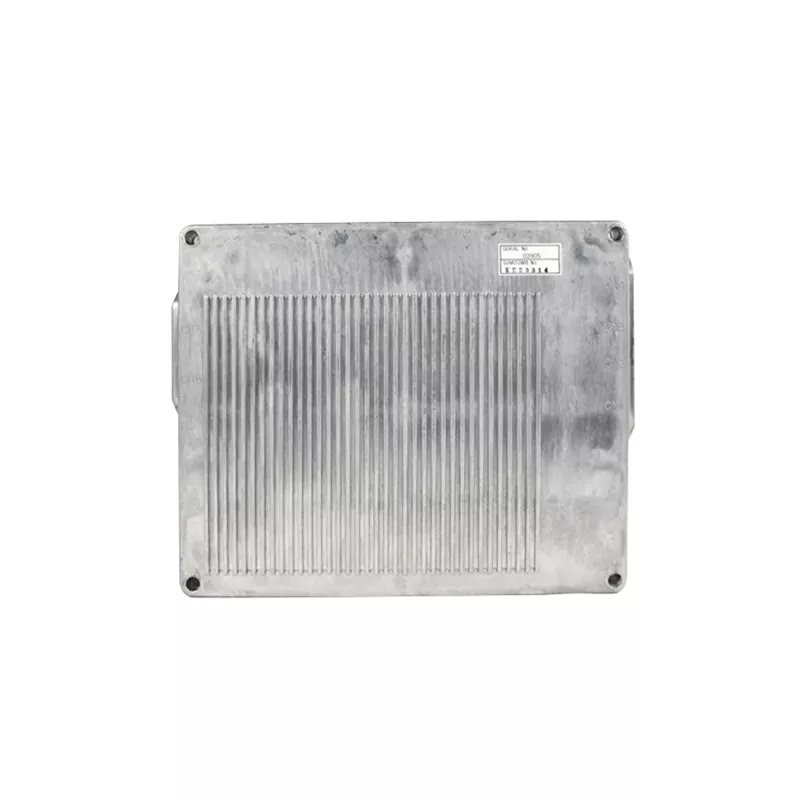

KHR51018 Controller-also referred to as electronic control unit (ECU) or computer board-is the central electronic module that governs the operation of a hydraulic excavator's powertrain and hydraulic system. It is composed of the following main parts:

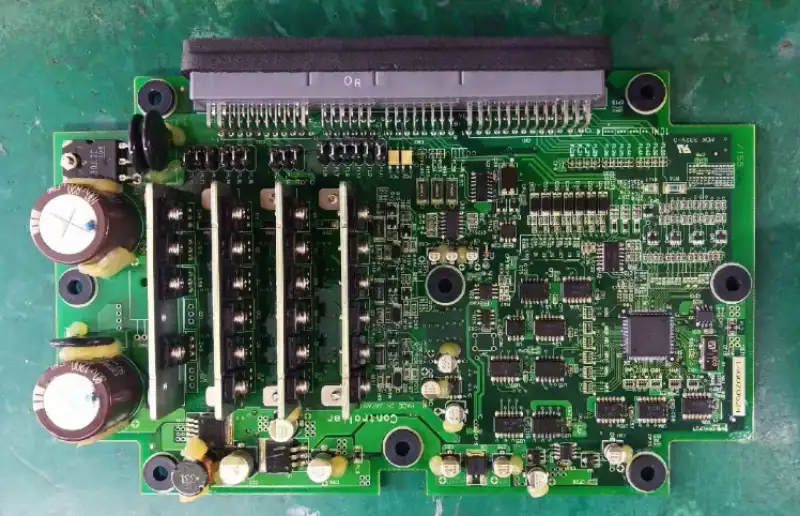

• Core processing unit: central processing unit (CPU), ROM (read only memory), RAM (random access memory), EEPROM (non-volatile memory)
• Input signal conditioning and acquisition: A/D converter, Multiplexer, Digital input interfaces
• Output Signal Generation & Actuator Drivers: D/A converter, Amplifiers & PWM drivers
• Communication Interface: CAN-bus transceiver
• Power supply and protection: Voltage regulators, Protection circuits
• PCB Hardware and physical structure: multi layered PCB, Connectors, Iron enclosure

Operating principle

Excavator controller receives signals from the sensors and processes them, then outputs control signals to the actuators to drive the movement and actions of the excavator.

The automatic control system of the excavator is mainly realized based on three basic components: sensors, actuators and controllers. Sensors are used to sense the working status and environmental information of the excavator, such as position, speed, force, posture, etc. Actuators are used to control the movement and actions of the excavator, including motors, hydraulic cylinders, electric motors, etc.

Fault Diagnosis

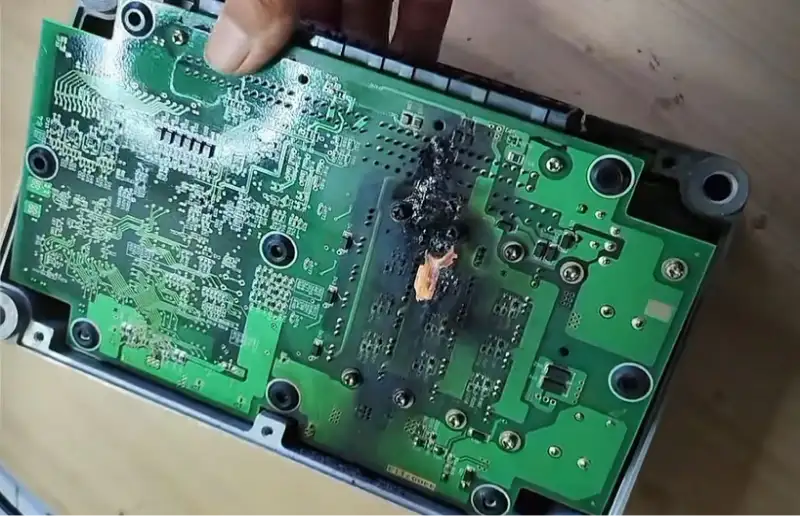

• Water seeped into excavator controller ECU or instrument panel cluster.
• The battery wire was connected in reverse.
• Fault or abnormal operation of the throttle motor of the excavator.
• Adding a 36V battery to start the excavator.
• Circuit shorting
• Alarm caused by loose contoller plug.
