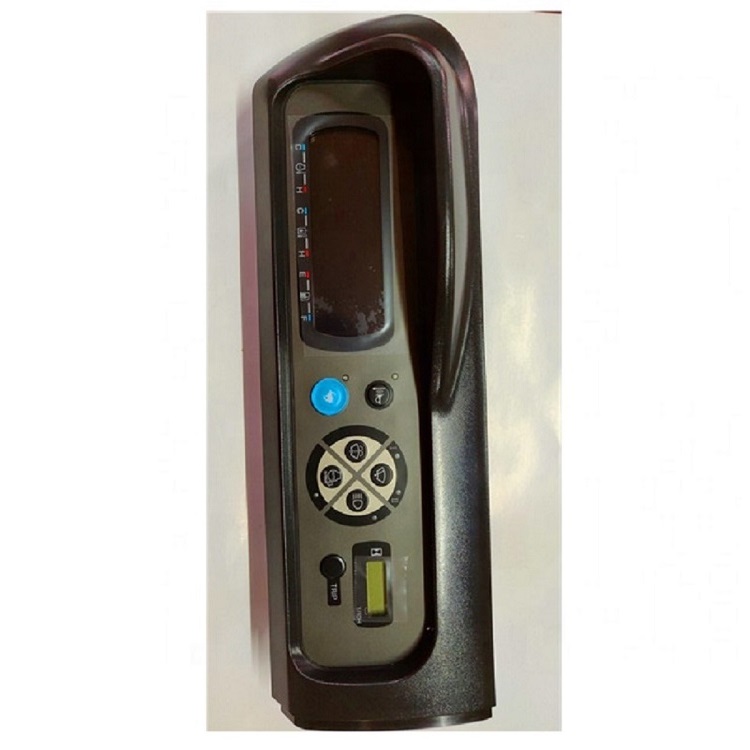

KHR10054 Monitor (also named display panel or instrument cluster) is consists of housing, buttons, LED and electronic control unit (circuit board). It is designed for Sumitomo SH-5 excavators which SH130-5 SH210-5 SH220LC-5 SH240-5 SH200-5 SH350HD-5 SH360HD-5 SH380LHD-5 SH460HD-5 SH480HD-5 SH700LDH-5B SH800LHD-5B.

Model Setting

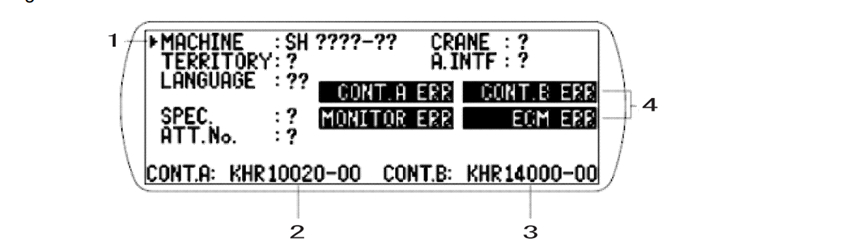

If the model selection has not been completed, immediately after the key is switched ON, the “Model select screen” is displayed

1.       If the model selection has not been completed, immediately after the key is switched ON, the "Model select screen" is displayed. For the "CONT.A" item, the part number for computer A is automatically displayed. In the same way, if computer B is connected (for the lift crane application or interference prevention application), the part number for computer B is automatically displayed for the "CONT. B" item.

2.      Items that must be input are displayed with a '?'. Model: insert number > or = to unit model. For items that do not have to be input, "-" is displayed.

3.      Input operating method Input by using the monitor switches as follows. (On the model select screen, the normal monitor switch functions do not work.)

4.      When all the input is complete, press ' ' Rabbit (Enter), while in the H Mode. If the input is inappropriate,"CONT. A ERR" is displayed. (When there is a ' ? ' remaining) (When the combination of model, destination, specification, or the like is inappropriate) At the same time, the ECM part number is automatically checked. If the input model and the ECM part number do not correspond, "ECM ERR" is displayed.

5.      If there is no problem in the input, the input ends.

6.      Even after the model selection is complete, it is possible to change just the LANGUAGE,CRANE, or ATT. NO. setting without a complete reset.

7. All reset On the model screen, if select P+Rabbit button are held down at the same time for 10 seconds, the data below is erased. • Data input in model selection (All this data returns to '?'.)

How to Installed

· Compatibility – KHR10053 (also KHR10050 KHR10051 KHR10052 KHR10054) display screen or monitor fits a wide range of Sumitomo excavator models including SH130-5 SH210-5 SH220LC-5 SH240-5 SH200-5 SH350-5 SH360-5 SH380-5 SH460-5 SH480-5 SH700-5B SH800-5B

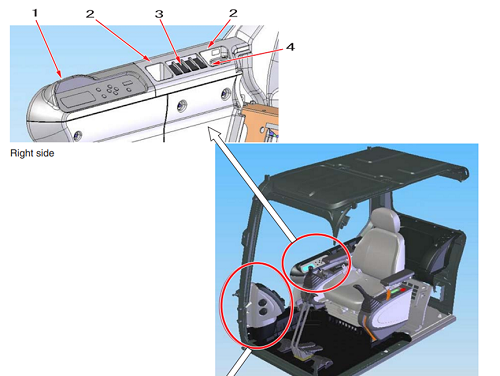

· Location – Mounted inside the operator cab, typically positioned on the dashboard above the monitor for optimal visibility

· OEM Replacement – Direct replacement part with cross-reference Case number KHR15200 khr15201

· Connections – Collects signals through sensors installed on various parts of the machine via its own acquisition system

· No Modifications Required – Designed as a plug-and-play replacement for factory-installed units

Company Advantage

1. One stop shop for Excavator accessories, such as controller, monitor, wire harness, pressure switch, sensor, relay, hydraulic pump, hydraulic motor, hydraulic regulator, final drive, gearbox, engine spare parts, etc.

2. Online free fault diagnosis and repair guide

3. Bulk  stock quick delivery

4. Support warranty 1-6 months

FAQ

Can I get a product photo?

Yes, we would like to send you real product picture.

Does it fit to my machine?

Please send me your machine nameplate or monitor number to me for checking.

How can I order it?

I will send invoice with payment information via email.

How do payment?

We accept to T/T, PayPal, Credit Card, Western Union transfer.

What's the delivery time?

Stock products estimated 7 days.

Do you offer warranty?

Yes, we offer 1-3 months warranty for OEM products in negotiation

What is the machine's maintenance history?

Enter your case monitor maintenance interface, review past service records and major component rebuilds

Does the monitor support my local language?

Yes, it available to setting languages such as English, Japanese, Chinese, Spanish, French, etc.

Does this monitor match my specific CASE excavator?

KHR10054 monitor match Sumitomo Excavator SH A5 models

Is the excavator monitor brand new, refurbished, or aftermarket, and has it been bench-tested before shipping?

It is genuine new monitor
