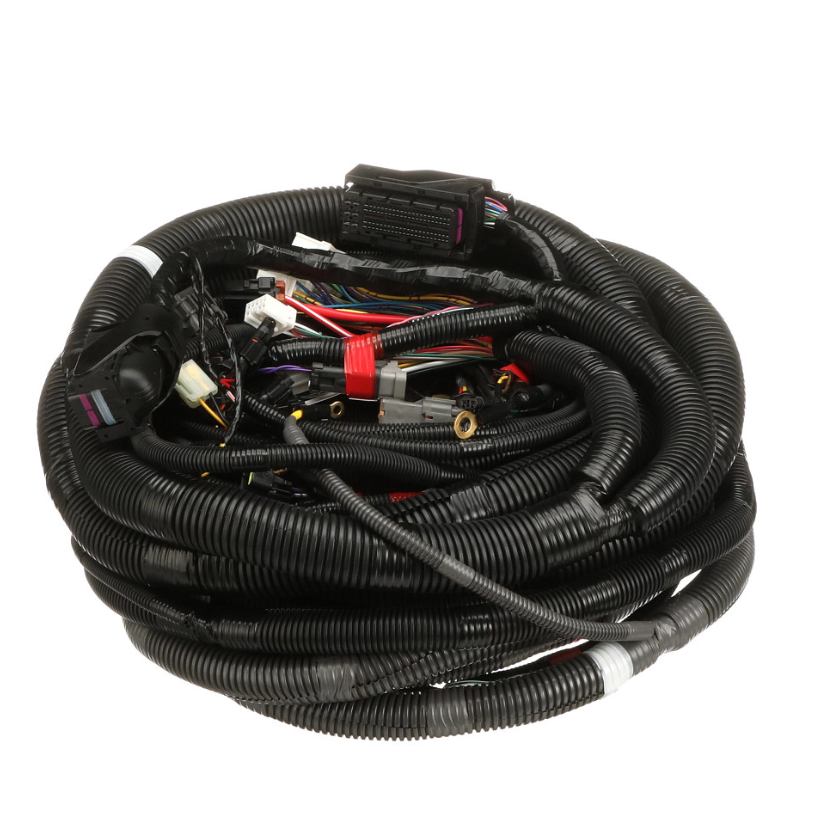

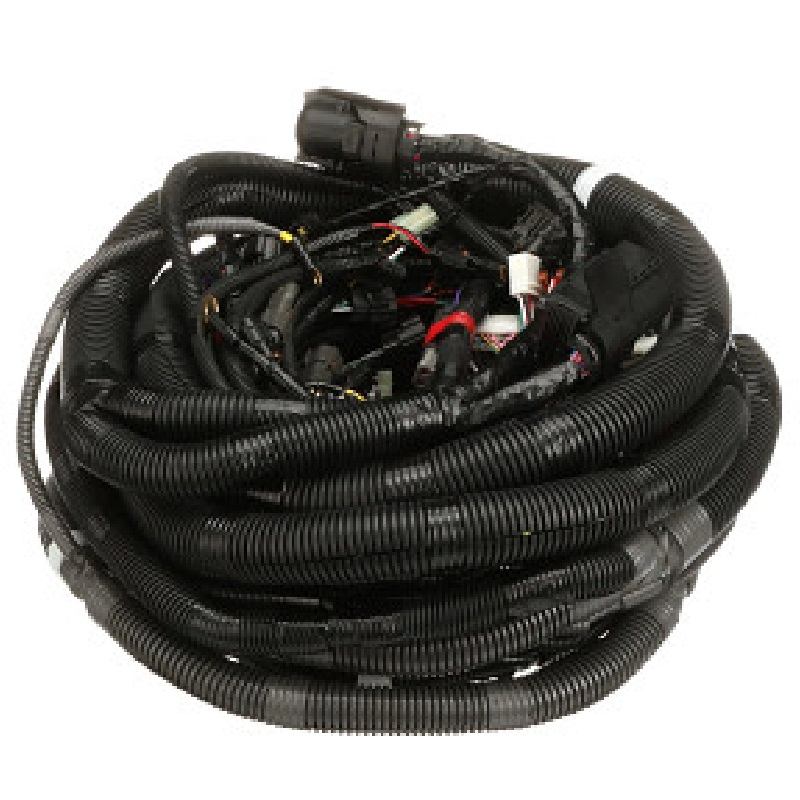

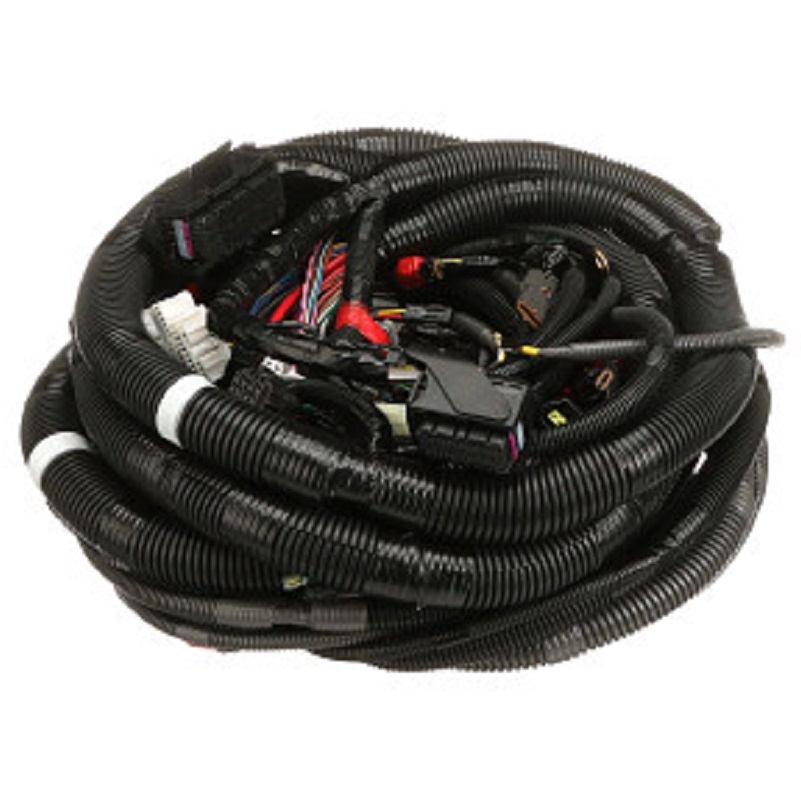

Sumitomo SH200-3 Frame Wire Harness KRR1783

KRR1783 is frame harness compatible model SH200A3, related machine controller KHR2680, cabin wire harness KHR3575, KHR3227, monitor SH3826 and engine controller KRH10020. It fit ISUZU 6BG1 engine type

Common Fault Analysis of Wiring Harness

The external wiring harness of an excavator is exposed to mud, water, dust, vibration, heat, oil, and mechanical impact. These conditions make it a high-failure area. Most faults can be grouped into the following categories.

1. Open Circuit / Broken Wire

• One function stops working completely.
• Intermittent operation when the machine vibrates or the boom/swing moves.
• Controller detects “open circuit” or “signal missing” fault codes.

• Blown fuse.
• Function dead or controller shuts down.
• Fault code for short to ground.

• Function operates continuously or when it should be off.
• Fuse blows immediately when power is applied.
• ECU or controller damage.

• Dim lights, slow actuators, weak signals.
• Intermittent sensor readings.
• Voltage drop under load, but continuity test may still pass.

• Intermittent faults after rain, washing, or operation in wet conditions.
• Corroded pins, green/white deposits.
• Multiple unrelated fault codes.

• Intermittent shorts or opens.
• Visible wear on conduit or insulation.
• Fuse blowing after machine vibration.

• Brittle or cracked insulation.
• Melted connectors or wire jackets.
• Short circuits near exhaust or turbo.

8. Vibration Fatigue

• Intermittent faults that appear only when the engine runs or the machine moves.
• Broken strands inside intact insulation.
• Fault codes that come and go.

9. Electromagnetic Interference (EMI)

• Erratic sensor signals.
• CAN communication errors.
• Random fault codes without physical damage.

10. Ground Faults

• Multiple unrelated electrical faults.
• Dim lights, weak functions, controller reset.
• Fault codes for low voltage or sensor reference.

11. CAN Bus Communication Faults

• Machine will not start or operate.
• Display shows communication error.
• Multiple controllers offline.

12. Rodent, UV, and Chemical Damage

• Chewed insulation.
• Cracked outer jacket.
• Swollen or softened wire insulation.

Testing and Inspection

If you need a model-specific version, provide the excavator brand/model and the wiring harness section.

1. Before applying power, check continuity, short-to-ground, and pin-to-pin resistance.
2. Reconnect the battery and verify power supply, sensor signals, lights, and controller communication.
3. Check for fault codes. Clear them and recheck after installation.
4. Operate all functions: travel, swing, boom, arm, bucket, and auxiliary hydraulics.
5. Inspect for pulling, rubbing, pinching, or interference through the full working range.
6. After initial operation, re-inspect and re-secure the harness as needed.

Why Choose Us

XCM-PARTS Corporation was founded on April 24th, 2014, with its headquarters located in Tongan District, Xiamen, China. As a specialized maintenance service supplier, we offer a comprehensive range of electric, hydraulic, and engine parts for excavators manufactured by leading excavator brands. Our efficient and expedient service ensures that we can promptly source the exact parts you require.

This indicates that the majority of our components are authentic! Additionally, we have the capability to provide top-notch hydraulic components used for Komatsu, Volvo, Kobelco, Hitachi, Caterpillar and other excavator brands. We take great pride in catering to the construction machinery parts market through various platforms . You can be confident in your purchase of any of our parts.

One-stop parts shop, pre-sale maintenance guidance, after-sale technical service.

FAQ

Can I get a product photo?

Yes, we would like to send you real product picture.

How to check engine wiring harness?

Please check your harness label number, we also can assist to figure it out.

How to fix the wiring harness?

We have after-sale support, please contact with me to ask for help install it.

How can I order it?

I will send invoice with payment information via email.

How do payment?

We accept to T/T, PayPal, Credit Card, Western Union transfer.

What's the delivery time?

Stock products estimated 7 days.

Is there a replacement or repair warranty if a fault occurs?

Yes, we offer 1-3 months warranty for OEM products in negotiation

Is the harness currently in stock for fast shipping?

Yes, the harness is in stock and can be shipped immediately

Can it be returned if it does not match the machine's pin configuration?

Can, we can negotiate it, customers pay shipping cost for return package

Is it an exact match for my machine?

Please send me your excavator nameplate, I will check which number wiring harness match to it.
