Key Functions

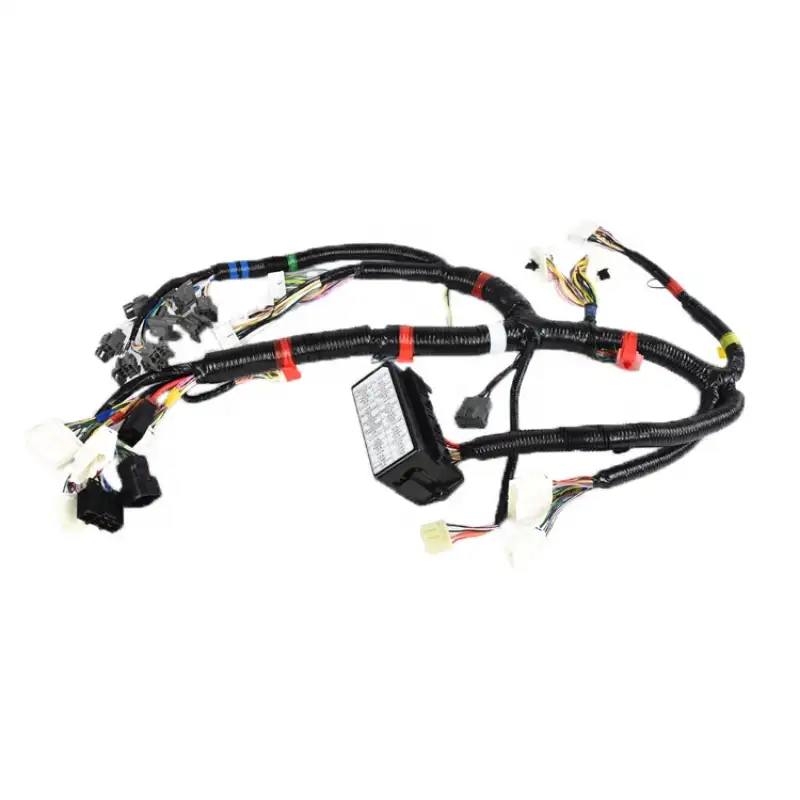

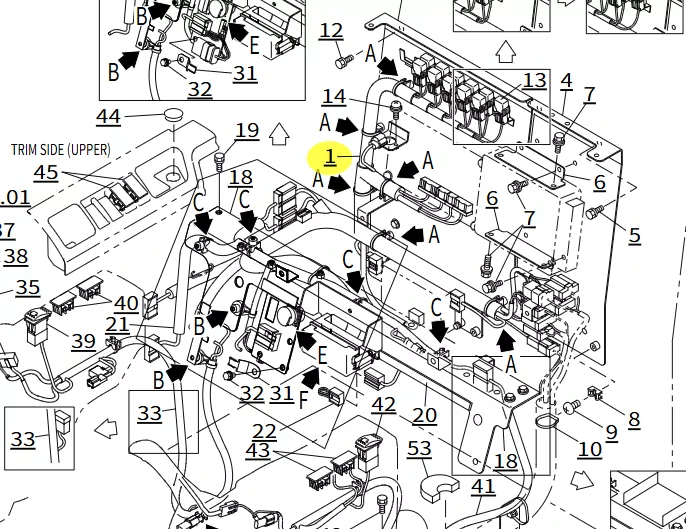

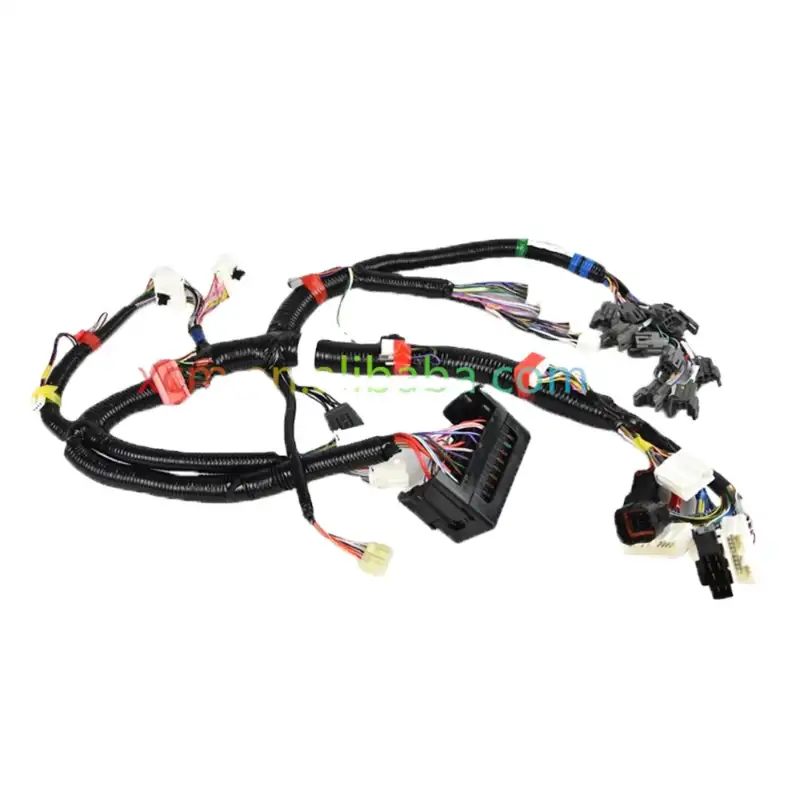

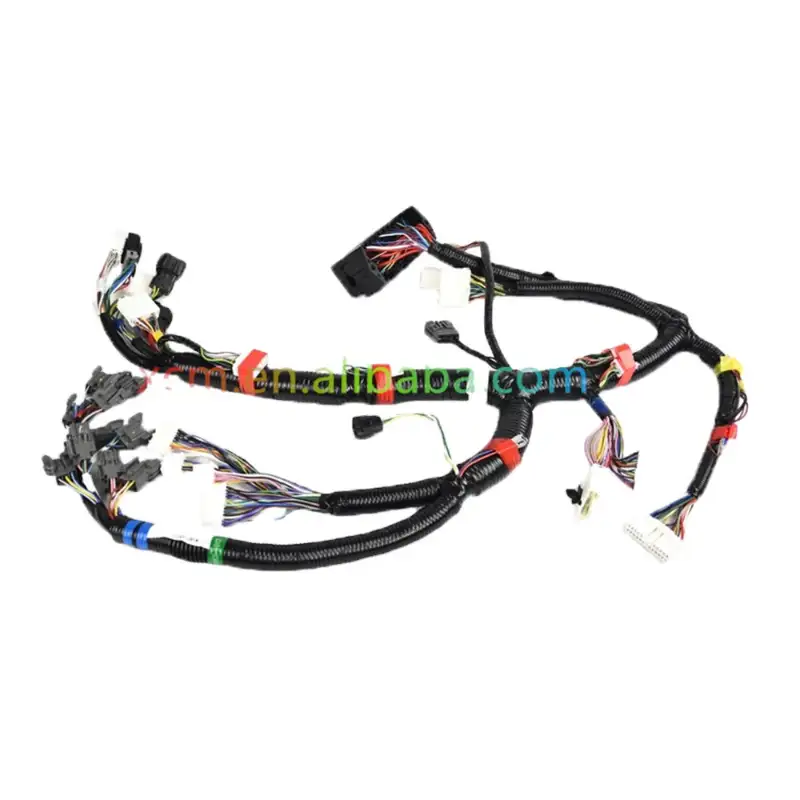

KHR16002 wire harness is central electrical wiring inside the operator's cab. It connects critical parts like the monitor cluster, joystick, switches, air conditioning, and controller.

Wiring Harness KHR16002 widely used to CASE, Sumitomo and Link-belt series models.

• Case CX-B excavators: CX130B CX160B CX180B CX210B CX220B CX230B CX240B CX290B CX300B
• Sumitomo SH-5 excavators: SH130-5 SH210-5 SH220-5 SH240-5 SH300-5
• Linkbelt excavators: 130X2 210X2 240X2

Packing

KHR16002 Wring Harness is packed in carefully to arrive in perfect condition.

• Inner Protection: Each harness is individually wrapped in protective film or oil paper to prevent scratches and moisture damage.
• Secondary Packaging: The wrapped unit is placed into original Sumitomo & Case carton box with ample foam padding to absorb shock and vibration.
• Outer Packaging: The small carton is then packed into a standard export carton

FAQ

Can I get a product photo?

Yes, we would like to send you real product picture.

Does it fit to my machine?

Please send me your machine nameplate or monitor number to me for checking.

How can I order it?

I will send invoice with payment information via email.

How do payment?

We accept to T/T, PayPal, Credit Card, Western Union transfer.

What's the delivery time?

Stock products estimated 7 days.

Is there a replacement or repair warranty if a fault occurs?

Yes, we offer 1-3 months warranty for OEM products in negotiation

What is the machine's maintenance history?

Enter your case monitor maintenance interface, review past service records and major component rebuilds

Is the harness currently in stock for fast shipping?

Yes, the harness is in stock and can be shipped immediately

Can it be returned if it does not match the machine's pin configuration?

Can, we can negotiate it, customers pay shipping cost for return package

Is the excavator monitor brand new, refurbished, or aftermarket, and has it been bench-tested before shipping?

It is genuine new monitor
