The KHR4104 is a 24V combined instrument and climate control panel serving as the operator interface for both machine monitoring and cabin A/C management on Sumitomo SH-3B series and Case CX series excavators. It features an LCD display, integrates temperature/fan/mode control, and is available through aftermarket channels with cross-reference to KHR49160. Because multiple related part numbers exist across the Sumitomo and Case platforms, always verify the original panel number on the machine before ordering

Core Function

KHR4104 display panel is an excavator instrument monitor used across Sumitomo and Case excavator.

1.  Machine Monitoring: Displays critical operating data including fuel level, coolant temperature, and operating status of the excavator.

2.  Instrument Panel Display: Serves as the primary dashboard interface for the operator, combining traditional analog gauges with a digital LCD screen for real-time machine data visualization.

Installation

1.       Compatibility – The monitor KHR4104 (also KHR49160) fits a wide range of Case excavators and Sumitomo excavators Sumitomo Excavators: SH135-3, SH75-3, SH80-3, SH125-3, SH225-3, SH135X-3B, SH75X-3B, SH80-3B, SH125X-3B, SH225X-3B Case Excavators: CX135SR CX225SR CX80C CX80 CX75SR

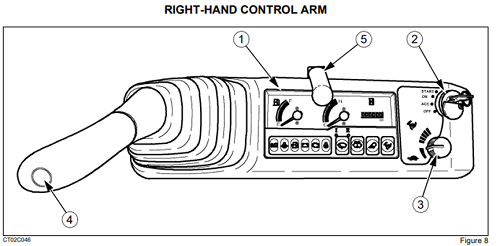

2.       Location – Mounted inside the operator cab, typically positioned on the right hand control arm which No.1 showed

3.       Warming –The role of the instrument panel is to indicate the state of the machine and quickly warn the operator in case of any malfunction, through alarms. It should not be used for checking or maintenance. The instrument panel is not waterproof. Make sure that it does not get wet
