Model Setting

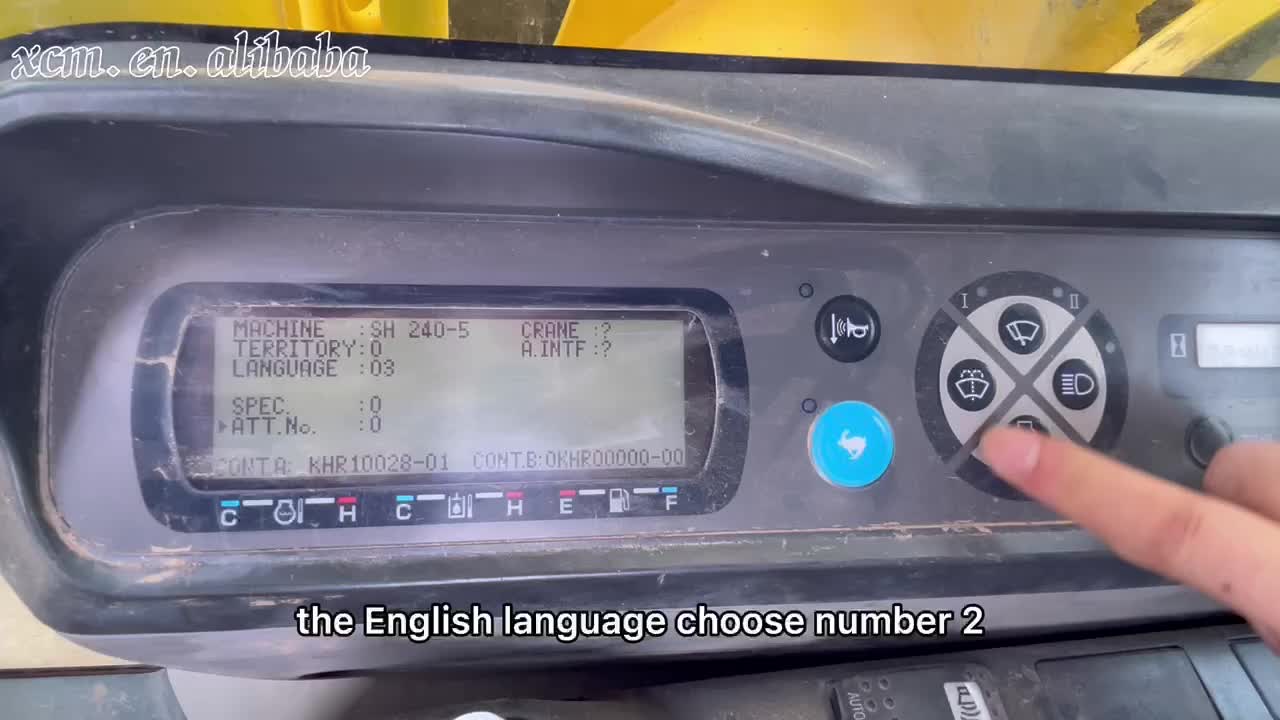

If the model selection has not been completed, immediately after the key is switched ON, the “Model select screen” is displayed

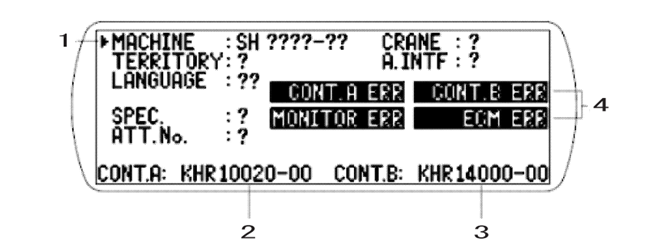

1. If the model selection has not been completed, immediately after the key is switched ON, the "Model select screen" is displayed. For the "CONT.A" item, the part number for computer A is automatically displayed. In the same way, if computer B is connected (for the lift crane application or interference prevention application), the part number for computer B is automatically displayed for the "CONT. B" item.

2. Items that must be input are displayed with a '?'. Model: insert number > or = to unit model. For items that do not have to be input, "-" is displayed.

3. Input operating method Input by using the monitor switches as follows. (On the model select screen, the normal monitor switch functions do not work.)

4. When all the input is complete, press ' ' Rabbit (Enter), while in the H Mode. If the input is inappropriate, "CONT. A ERR" is displayed. (When there is a ' ? ' remaining) (When the combination of model, destination, specification, or the like is inappropriate) At the same time, the ECM part number is automatically checked. If the input model and the ECM part number do not correspond, "ECM ERR" is displayed.

5. If there is no problem in the input, the input ends.

6. Even after the model selection is complete, it is possible to change just the LANGUAGE,CRANE, or ATT. NO. setting without a complete reset.

7. All reset On the model select screen, if P+Rabbit buttons are held down at the same time for 10 seconds, the data below is erased. • Data input in model selection (All this data returns to '?'.)

• Trouble log

• Usage log

• Data changed with CFG

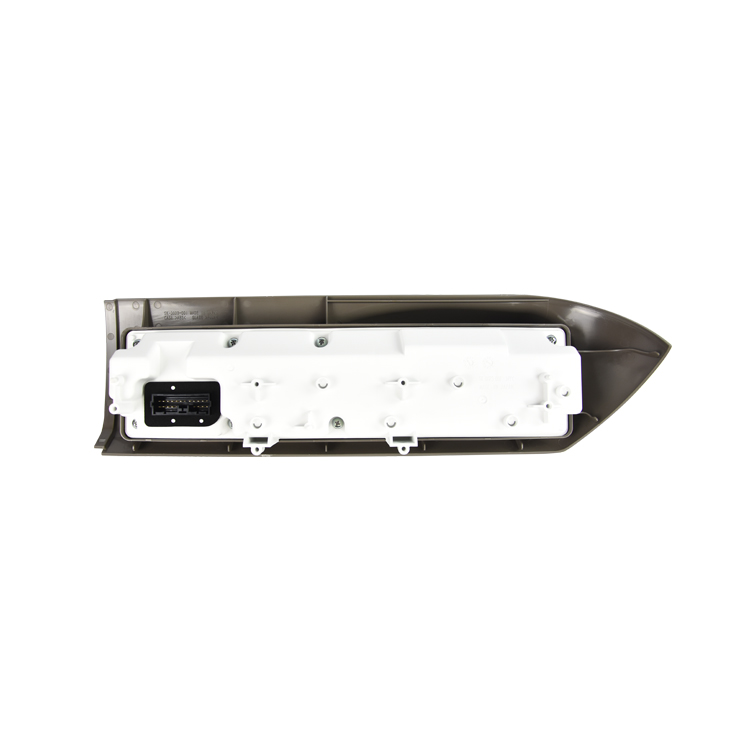

Installation

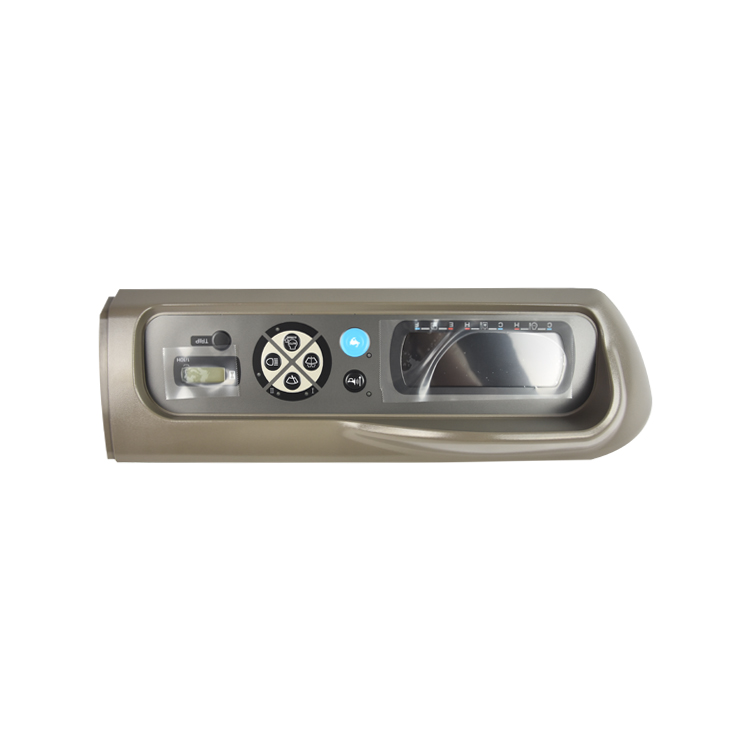

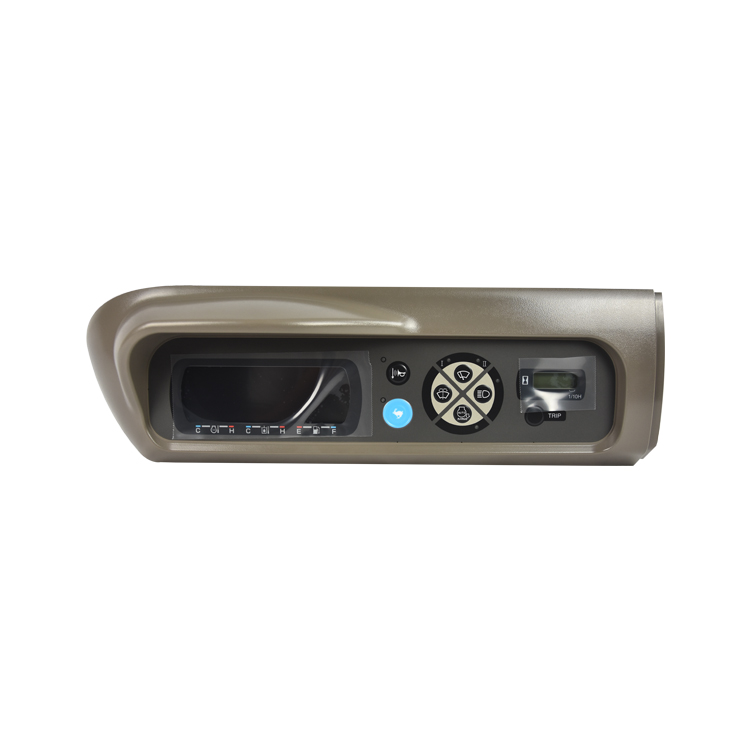

1. Compatibility – The monitor KHR15202 fits a wide range of Case excavator models including CX130B CX210B CX220B CX240B CX290B CXX350B CX370B CX470B CX700B CX800B.

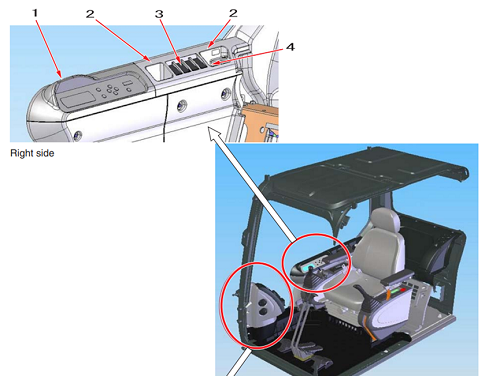

2. Location – Mounted inside the operator cab, typically positioned on the dashboard above the monitor for optimal visibility

3. OEM Replacement – Direct replacement part with cross-reference number KHR15200 KHR15021

4. Connections – Collects signals through sensors installed on various parts of the machine via its own acquisition system

6. No Modifications Required – Designed as a plug-and-play replacement for factory-installed units
