The KHR12512 AC control panel is an industrial-grade excavator cab A/C control panel that integrates temperature regulation, refrigerant flow management, defrost control, and mode selection into a single compact interface with LCD visual feedback. It is designed for reliable operation in demanding construction and mining environments.

Technical Specifications

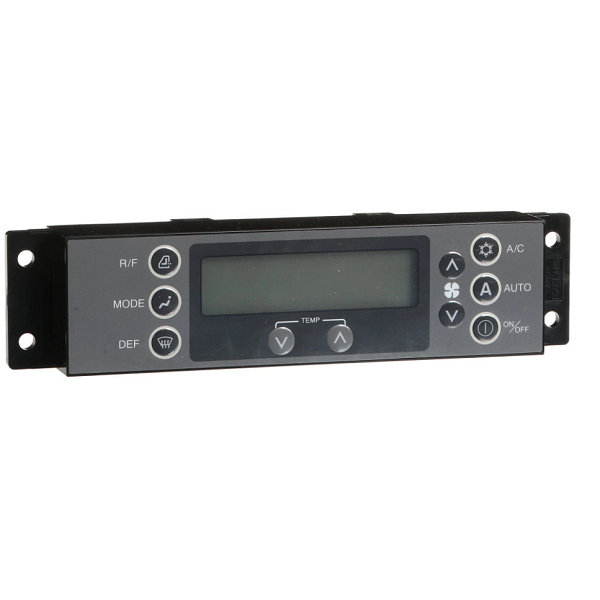

1. Display Type: High-resolution LCD with backlight for clear visibility in all lighting conditions.

2. Control Functions: R/F (Refrigerant Flow), DEF (Defrost), AUTO, and mode selection.

3. Material: Durable metal composite body with corrosion-resistant construction for harsh industrial environments.

4. Mounting: Two end mounting ears for secure installation.

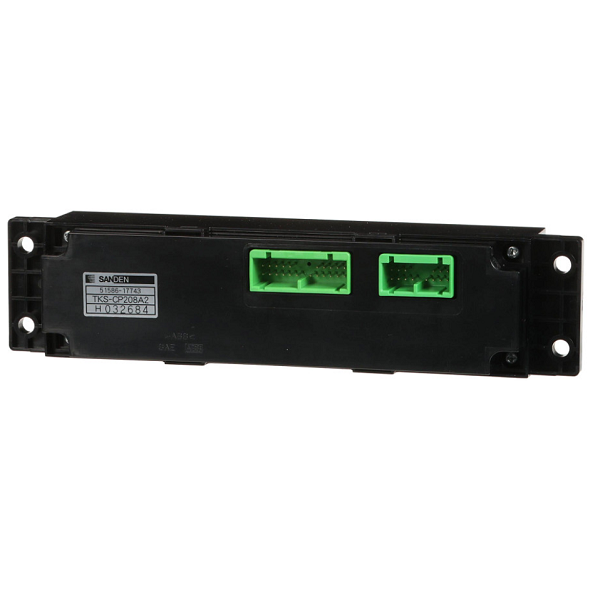

5. Rear Connections: Twin connector blocks (compare keying and pin count before ordering).

Applicability and Installed

1. Compatibility –The monitor KHR12512 (also KHR12510 KHR12511) fits a wide range of Case excavators and Sumitomo excavators Sumitomo Excavators: SH200A5, SH210-5, SH120-5, SH130-5, SH200-5, SH210-5, SH220-5, SH240-5, SH300-5, SH330-5, SH350-5, SH360-5, SH450-5, SH470-5, SH700-5.

Case Excavators: CX130B, CX160B, CX210B, CX240B, CX290B, CX300B, CX350B, CX460B, CX470B, CX700B, CX800B

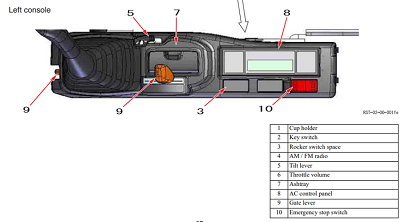

2. Location – Mounted inside the operator cab, typically positioned on the left console which No.8 showed

3. Connections – Collects signals through sensors installed on various parts of the machine via its own acquisition system

4. No Modifications Required – Designed as a plug-and-play replacement for factory-installed units

Why Choose Us

1. We can supply full range of spare parts for Sumitomo, Case, and Link-belt excavators

2. We have Isuzu trained technicians.

3. We can support online excavator fault diagnosis and repair guide.

FAQ

Can I get a product photo?

Yes, we would like to send you real product picture.

Does it fit to my machine?

Please send me your machine nameplate or monitor number to me for checking.

How can I order it?

I will send invoice with payment information via email.

How do payment?

We accept to T/T, PayPal, Credit Card, Western Union transfer.

What's the delivery time?

Stock products estimated 7 days.

Do you offer warranty?

Yes, we offer 1-3 months warranty for OEM products in negotiation

What is the machine's maintenance history?

Enter your case monitor maintenance interface, review past service records and major component rebuilds

Does the monitor support my local language?

Yes, it available to setting languages such as English, Japanese, Chinese, Spanish, French, etc.

Does this control panel match my specific CASE excavator?

KHR15212 control panel match Case Excavator CX B models

Is the excavator monitor brand new, refurbished, or aftermarket, and has it been bench-tested before shipping?

It is genuine new monitor
