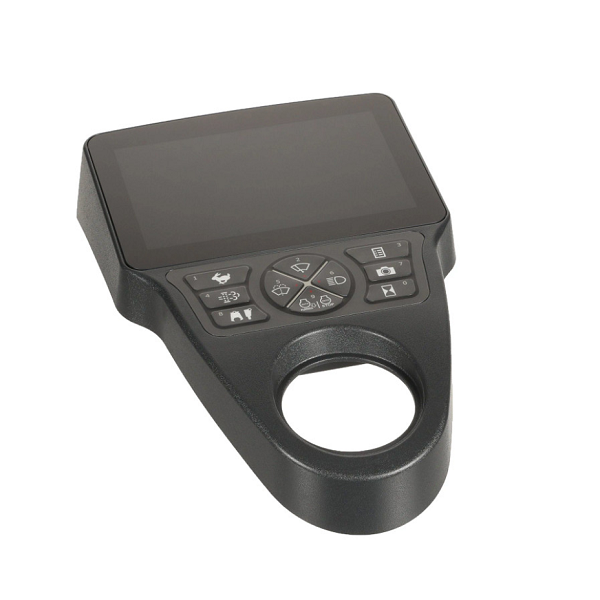

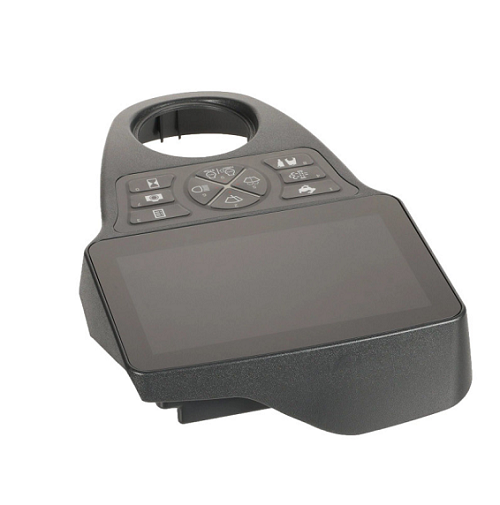

KHR69500 dashboard monitor (also named display panel or instrument cluster) is consists of housing, buttons, LED and electronic control unit (circuit board). It is designed for Case D model excavators which CX130D CX145D CX220D CX245D CX350D CX370D CX380D CX490D CX500D CX750D

How to setting

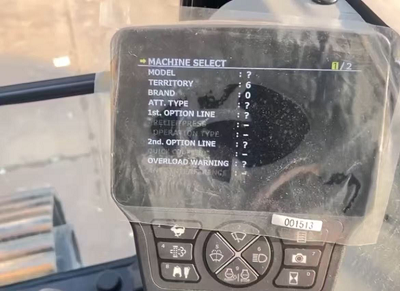

If the model selection has not been completed, immediately after the key is switched ON, the “Model select screen” is displayed

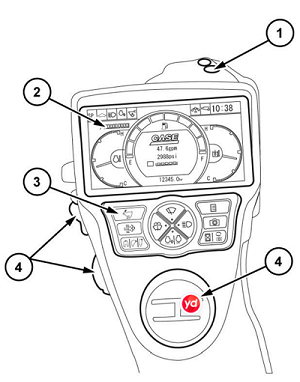

1. Temperature probe Do not place objects on top of it.

2. Monitor display Clock, Fuel Meter, Coolant Water Thermo meter, Hydraulic Oil Thermo meter. Displays the function selection status. Displays the machine status. Displays the back monitor. Displays the machine maintenance status.

3. Monitor switch Selects the machine status. The monitor display can be switched.

4. Air vents The air vents control the circulation and direction of air flow. The air vents are opened and controlled manually. ATTENTION: The air vents must always be open when the air conditioning is in use.

Applicability

1. Compatibility – The Case monitor KHR69500 (also named instrument panel ) fits a wide range of Case D models including CX130D CX145D CX220D CX245D CX350D CX370D CX380D CX490D CX500D CX750D.

2. Location – Mounted inside the operator cab, typically positioned on the dashboard above the monitor for optimal visibility OEM

3. Replacement – Direct replacement part with cross-reference number KHR43202 KHR43203 KHR43220 KHR43221 KHR43222 KHR49202 KHR56800 KHR59620 Connections – Collects signals through sensors installed on various parts of the machine via its own acquisition system

4. No Modifications Required – Designed as a plug-and-play replacement for factory-installed units

FAQ

Can I get a product photo?

Yes, we would like to send you real product picture.

Does it fit to my machine?

Please send me your machine nameplate or monitor number to me for checking.

How can I order it?

I will send invoice with payment information via email.

How do payment?

We accept to T/T, PayPal, Credit Card, Western Union transfer.

What's the delivery time?

Stock products estimated 7 days.

Do you offer warranty?

Yes, we offer 1-3 months warranty for OEM products in negotiation

What is the machine's maintenance history?

Enter your case monitor maintenance interface, review past service records and major component rebuilds

Does the monitor support my local language?

Yes, it available to setting languages such as English, Japanese, Chinese, Spanish, French, etc.

Does this monitor match my specific CASE excavator?

KHR69500 monitor match Case Excavator CX D models

Is the excavator monitor brand new, refurbished, or aftermarket, and has it been bench-tested before shipping?

It is genuine new monitor
