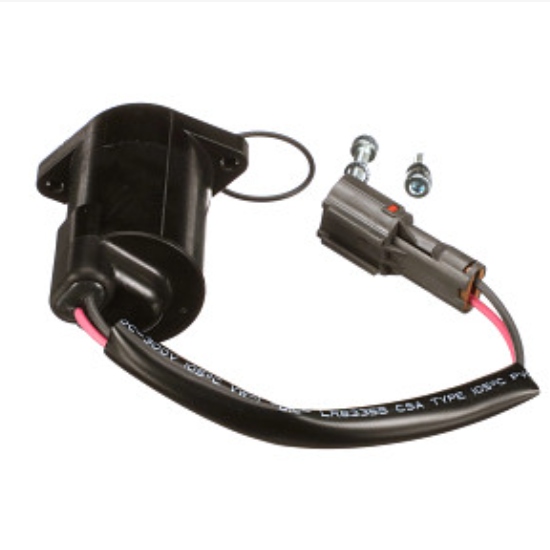

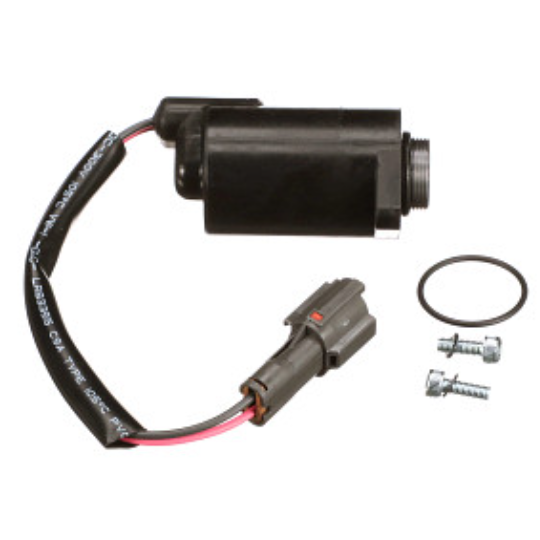

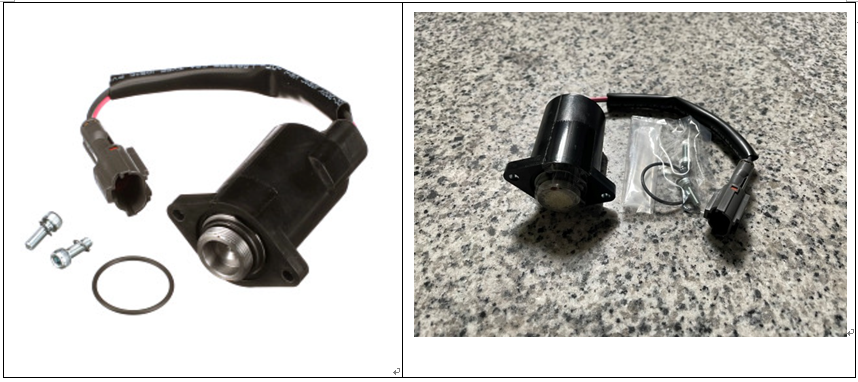

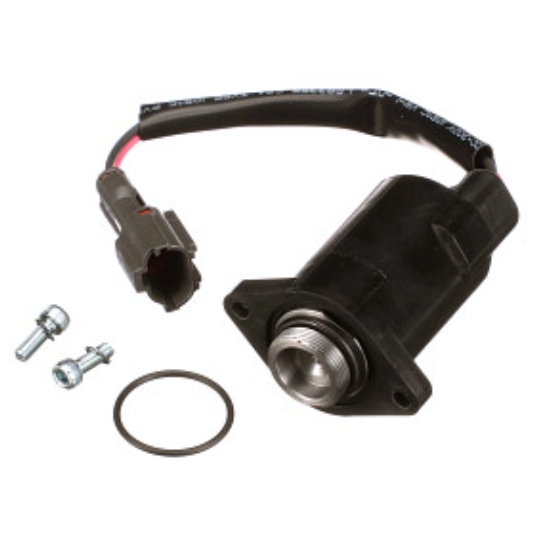

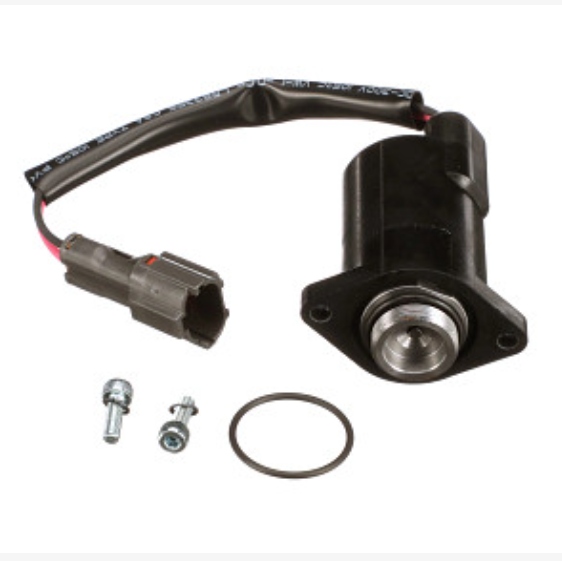

Case Excavator Solenoid Valve LL001140

LL001140 is a proportional solenoid valve coil for the main hydraulic pump control system on Sumitomo and CASE excavators. It converts ECM PWM signals into hydraulic pump displacement control. In Sumitomo excavators, it corresponds to fault codes 7002, 7040, and 7240; in CASE excavators, it corresponds to 602, 7022, and 0219. Fault symptoms primarily manifest as reduced hydraulic power, sluggish or erratic attachment response, and warning lamp illumination. Diagnosis focuses on coil resistance measurement (8–15 ohms), voltage supply verification, and harness inspection.

LL001140 is used to Case excavator Sumitomo excavator and Link-belt excavator.

Fault Codes and Symptoms

Fault Code Description Trigger Condition

7002 Main Pump Solenoid Valve Circuit Malfunction (N1: GND short circuit / open circuit / power short circuit) ECM detects abnormal voltage or current in the proportional control solenoid circuit; coil resistance outside 8–12 ohms

7040 Hydraulic Pump Solenoid Valve Circuit Malfunction Short circuit or open circuit detected in the main pump control system; voltage outside 10–14V or coil resistance outside 8–15 ohms

7240 Boom-Up Solenoid Valve Circuit Malfunction Abnormal electrical current or open circuit in the proportional control valve system; coil resistance outside 8–12 ohms

Compatible Brands Sumitomo, CASE, Link-Belt, Compatible Models Sumitomo SH200-5, SH210-5, SH240-5, SH350-5, SH350-3, SH450-5, SH240A5; CASE CX130, CX135, CX145, CX160, CX210, CX210B, CX240B, CX250C, CX290, CX350, CX460, CX470

About XCM-PARTS

XCM-PARTS was founded in 2014, we are a distributor specialized in genuine and oem excavator accessories for SUMITOMO, CASE, Link-Belt, Hitachi, Kobelco, Caterpillar, Komatsu, Volvo, XCMG… etc. in China. XCM-PARTS is CASE authorized dealer in China, we specialize in full range of genuine Case & Sumitomo spare parts, products main include monitor, controller, sensor, wiring harness, hydraulic parts, engine parts… etc. which fit to SUMITOMO excavators, CNH excavators, Link-belt excavators.

As a distributor of top-brand of hydraulic in China, we supply high quality multi brand excavator parts with hydraulic pump, hydraulic motor, final drive, hydraulic valve, regulator, etc. We proudly service client with one-step excavators parts purchasing via many plateforms like as eBay, Alibaba, Aliexpress and our company website! You can rest assured when you purchase one of our parts.

Our Advantages

. Professional maintenance service

. One-stop parts service and technical support

. Ready stock, fast dispatch from our warehouse

Customer Overviews

XCM-PARTS company work at excavator after-sales market over 20 years, customer satisfaction is the foundation of our business. We are dedicated to delivering high-quality products, professional support, and timely service that meet and exceed customer expectations. We actively listen to customer feedback, respond quickly to their needs, and continuously improve our products and processes. By building trust and creating lasting value, we strive to establish long-term partnerships with every customer.

FAQ

How is the quality?

It is genuine and new sensor.

What Excavator model the solenoid fit?

LL001140 is Case / Sumitomo / Link-belt excavator sensor

How can I order it?

I will send invoice with payment information via email.

How do payment?

We accept to T/T, PayPal, Credit Card, Western Union transfer.

What's the delivery time?

Stock products estimated 3-7 days.

Do you have photo for the harness?

Yes, we will send you photo before shipping.

Can you offer warranty for your products?

Yes, we offer 1-3 months warranty.

Do you have catalog?

Yes, catalog is available.
