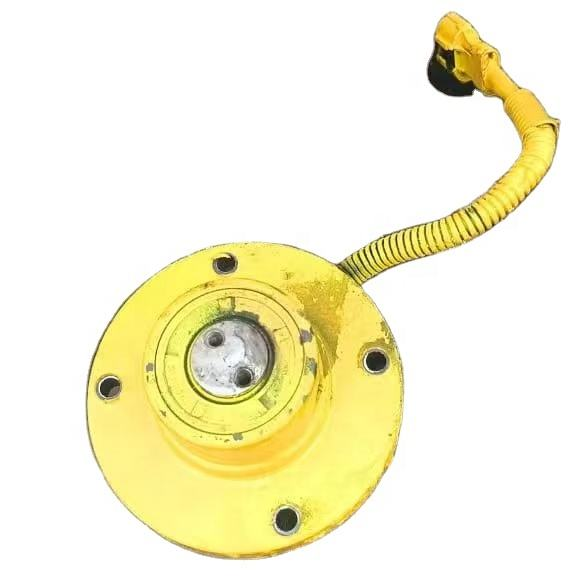

Sumitomo Excavator Angle Sensor HHR0003

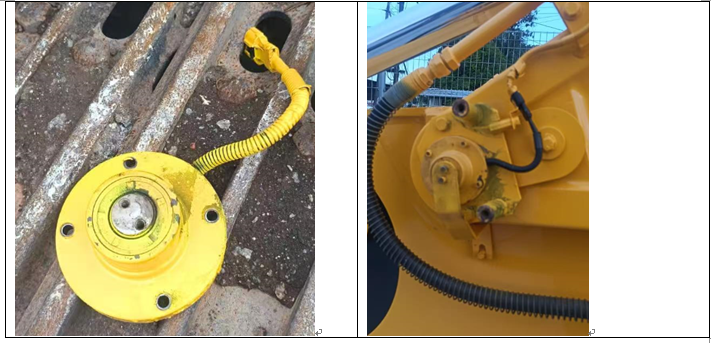

HHR0003 is a position sensor that detects the oscillating angle of the arm (forearm) relative to the boom, converting mechanical angular movement into an electrical signal for the machine controller (ECM). The arm angle sensor is mounted at the arm pivot area — specifically, on the boom side plate near the point where the arm connects to the boom. The sensor body is installed in a sensor attachment hole provided on the third boom side plate, with a link member connecting the sensor body to the arm side plate to transmit the oscillating angle of the arm. This arrangement protects the sensor body from external damage while enabling accurate angle detection throughout the arm's full range of motion.

HHR0003 is listed to Case CX210B angle sensor, CX290B angle sensor, CX145D angle sensor, CX145C angle sensor, CX75C angle sensor, Sumitomo SH200-8 angle sensor.

P7061 Fault Code

Fault Code P7061 on Sumitomo / Case excavators is an arm angle sensor (forearm angle sensor) circuit fault according to the standard Sumitomo fault code list. It is defined as: Arm angle sensor — GND short circuit / open circuit / power short circuit. The fault is triggered when the ECM detects the sensor signal voltage outside the normal range:

Customer Overviews

XCM-PARTS company work at excavator after-sales market over 20 years, customer satisfaction is the foundation of our business. We are dedicated to delivering high-quality products, professional support, and timely service that meet and exceed customer expectations. We actively listen to customer feedback, respond quickly to their needs, and continuously improve our products and processes. By building trust and creating lasting value, we strive to establish long-term partnerships with every customer.

About XCM-PARTS

Over the years, we have actively participated in China’s premier construction machinery exhibitions. These shows serve as vital platforms where we connect with the global engineering community, showcase our premium excavator parts, and stay ahead of market trends. Our consistent presence at these exhibitions has been instrumental in expanding our footprint across high-growth markets. Today, we proudly serve customers in South America, North America, the Middle East, and Russia—regions where our full range of parts and responsive service have earned growing trust and repeat business Whether you are a new contact exploring collaboration or an existing partner seeking continued support, we welcome the opportunity to meet face-to-face at our next show. Let’s build a stronger future together—one project, one part, one partnership at a time.

FAQ

How is the quality?

It is genuine and new sensor.

What Excavator model the sensor fit?

HHR0003 is Case / Sumitomo / Link-belt excavator sensor

How can I order it?

I will send invoice with payment information via email.

How do payment?

We accept to T/T, PayPal, Credit Card, Western Union transfer.

What's the delivery time?

Stock products estimated 3-7 days.

Do you have photo for the harness?

Yes, we will send you photo before shipping.

Can you offer warranty for your products?

Yes, we offer 1-3 months warranty.

Do you have catalog?

Yes, catalog is available.
