Case Excavator Solenoid Valve KHJ15440

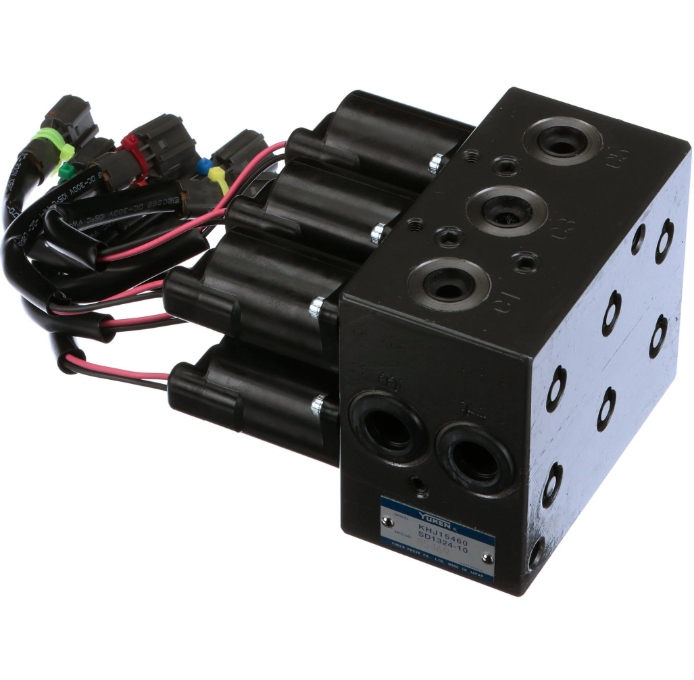

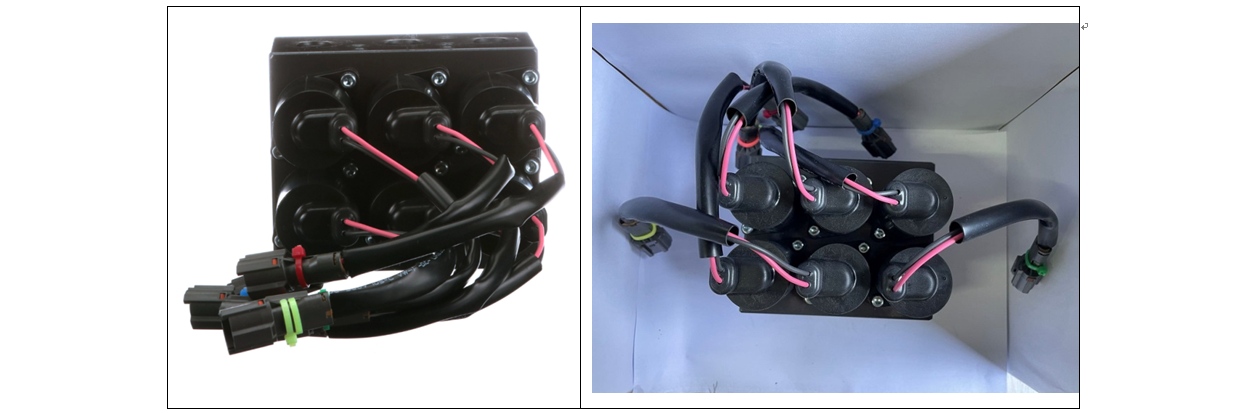

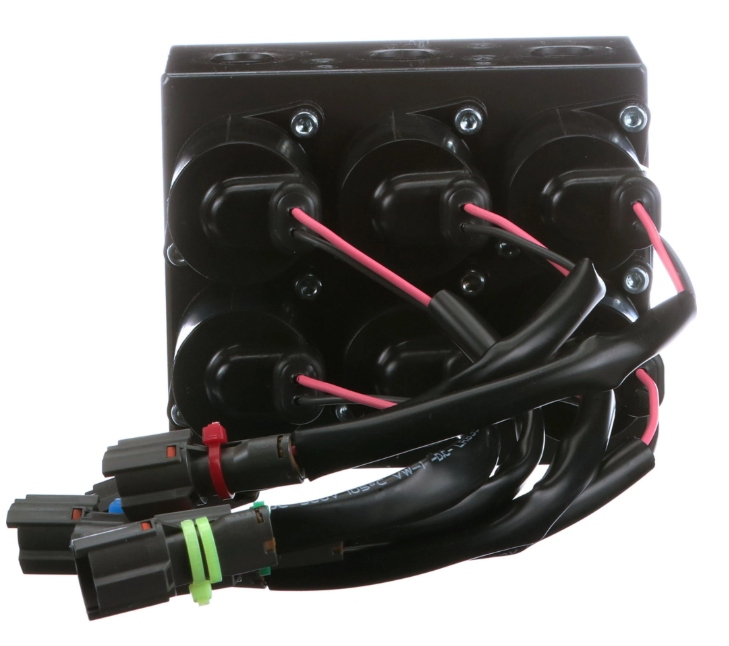

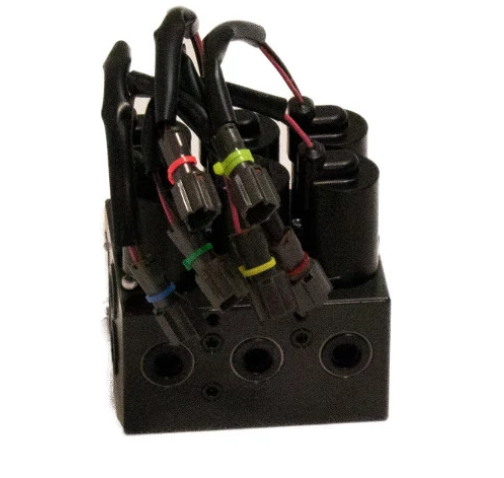

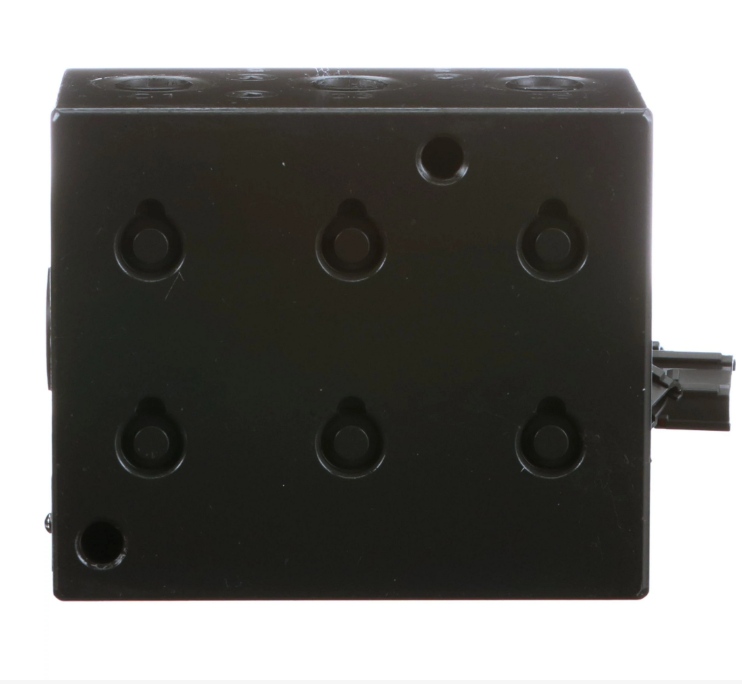

The KHJ15460 solenoid valve group is mounted in the pilot hydraulic circuit of the excavator, typically located on or near the main hydraulic pump assembly or the main control valve on the upper structure of the machine. It is a bolt-on assembly that serves as the central

interface between the ECM‘s electrical control signals and the hydraulic pilot pressure system. On Sumitomo SH210-5, SH240-5, and SH350-5 models, the KHJ15460 is listed alongside the KHJ14520 as the standard solenoid valve group in the electrical parts section of the parts catalog. The same part number is listed for CASE CX-series excavators in the hydraulic control system section.

• KHJ15460 solenoid valve compatible Case excavator:

CX130 solenoid valve, CX180 solenoid valve, CX160 solenoid valve, CX210 solenoid valve, CX240 solenoid valve, CX290 solenoid valve, CX330 solenoid valve, CX350 solenoid valve, CX460 solenoid valve

• KHJ15460 solenoid valve compatible Sumitomo excavator

SH350-3B solenoid valve, SH450-3B solenoid valve.

Specification

The six valve sections within the assembly are typically assigned to control the following pilot circuits (model-dependent):

• Swing brake (release/apply pilot pressure) — Fault Code 7200
• Travel speed (high/low speed change) — Fault Code 7201
• Boost (power boost pilot pressure) — Fault Code 7202
• Power saving (power saving mode control) — Fault Code 7204
• Safety lock (pilot circuit shut-off) — Fault Code 7212

Proportional control (boom/arm/bucket/swing proportional valve) — Fault Code 7240–7245 Corresponding Fault Codes and Symptoms Because the KHJ15460 is a valve group assembly rather than a single solenoid, fault codes are typically reported by the ECM at the individual valve circuit level. When a fault occurs in one of the six solenoid sections within the assembly, the ECM triggers a code corresponding to that specific hydraulic function.
