Manufacture	Sumitomo
Part Number	KHJ14520
Compatibility	Sumitomo, Case, Link-belt excavators
MOQ	1 piece
Country Of Origin	Japan
Package	Standard natural carton
Dimension	20*22*21cm
Net Weight	7 kg

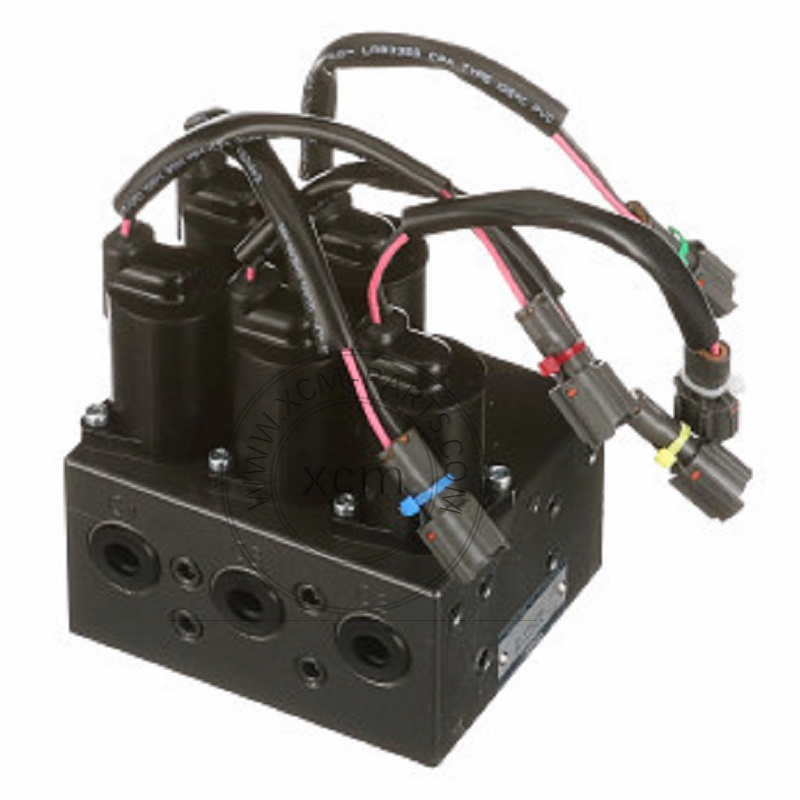

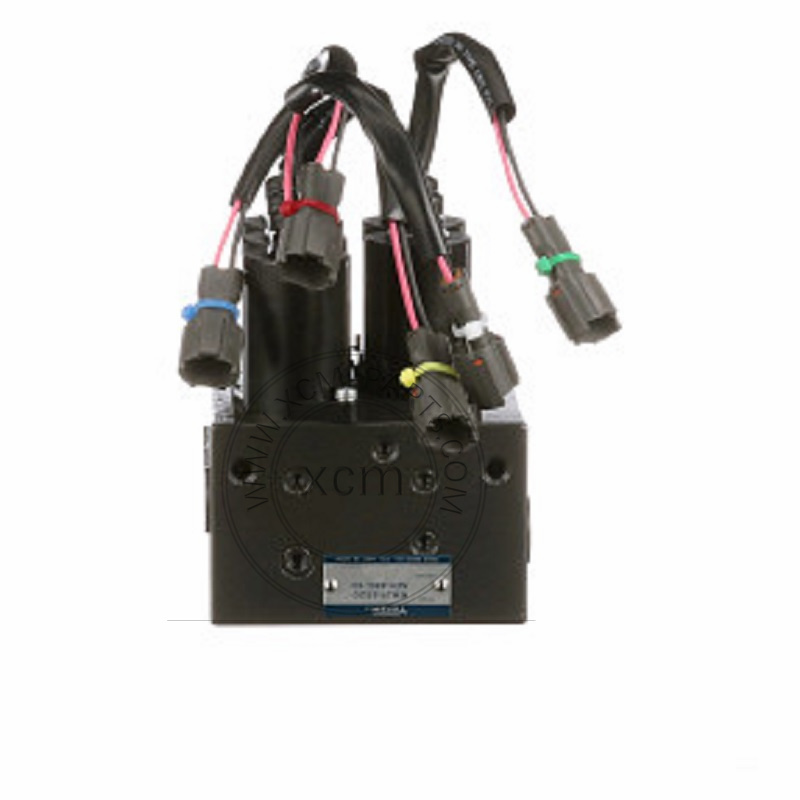

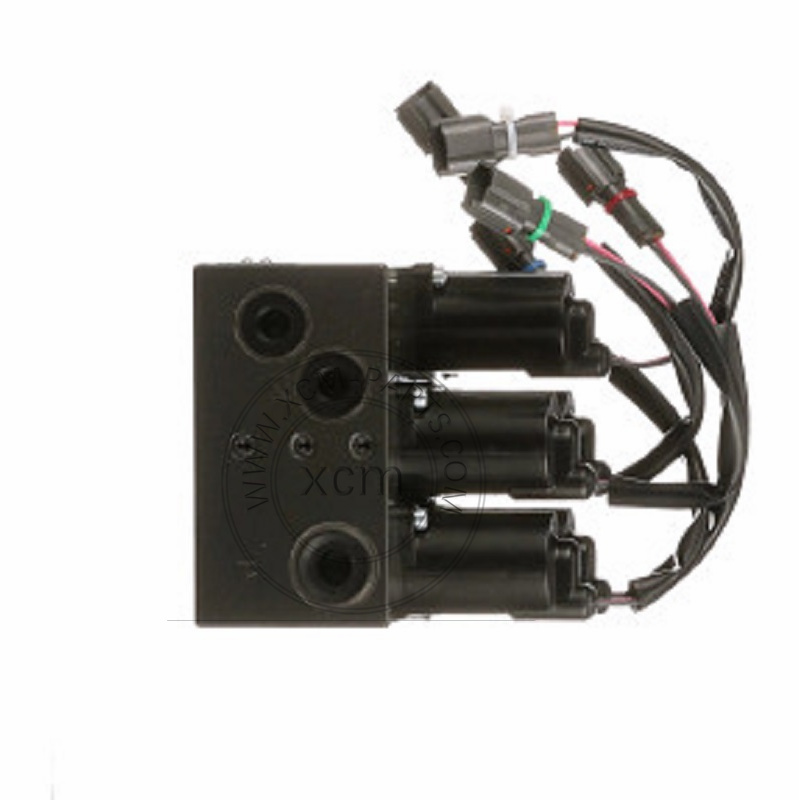

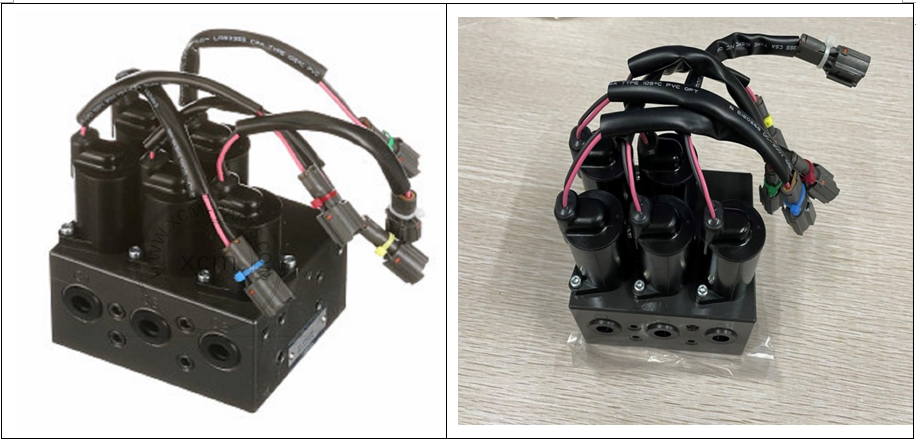

Case Excavator Solenoid Valve KHJ14520

The KHJ14520 solenoid valve group is mounted in the pilot hydraulic circuit of the excavator, typically located beneath the cab or near the main control valve on the upper structure of the machine. It is a bolt-on assembly that serves as the central interface between the ECM’s electrical control signals and the hydraulic pilot pressure system. Compatible Brands Sumitomo, CASE Compatible Models Sumitomo: SH130, SH145, SH200, SH210-5, SH240, SH240-5, SH350, SH350-5A5, SH460-5, SH800-5; CASE: CX130B, CX160B, CX180B, CX210B, CX240B, CX250C, CX290B, CX300C, CX350B, CX360B, CX470B, CX490C, CX500C, CX700B, CX800B

Function Solenoid Valve

The five valve sections within the assembly are typically assigned to control the following pilot circuits (model-dependent):

• Boom (raise/lower pilot pressure)
• Arm (in/out pilot pressure)
• Bucket (curl/dump pilot pressure)
• Swing (left/right pilot pressure)
• Travel (forward/reverse pilot pressure) or Attachment circuit (model-dependent)

Fault Code Description Trigger Condition

• 7200 Swing Brake Solenoid Valve Open circuit or short circuit detected in the swing brake solenoid circuit
• 7201 Walking Speed Solenoid Valve Abnormal voltage or current in the travel speed solenoid circuit
• 7202 Boost Solenoid Valve Short circuit or open circuit in the boost pressure solenoid circuit
• 7204 Saving Solenoid Valve Electrical abnormality in the power saving solenoid circuit
• 7212 Safety Lock Solenoid Valve Open or short circuit in the safety lock pilot circuit
• 7240 Pump Output Proportional Valve Abnormal current in the pump output proportional solenoid circuit (normal operating range: 450–850 mA)
• 7244 Arm Proportional Solenoid Valve Open circuit or short circuit in the arm proportional control solenoid circuit

Customer Overviews

XCM-PARTS company work at excavator after-sales market over 20 years, customer satisfaction is the foundation of our business. We are dedicated to delivering high-quality products, professional support, and timely service that meet and exceed customer expectations. We actively listen to customer feedback, respond quickly to their needs, and continuously improve our products and processes. By building trust and creating lasting value, we strive to establish long-term partnerships with every customer.

About XCM-PARTS

XCM-PARTS was founded in 2014, we are a distributor specialized in genuine and oem excavator accessories for SUMITOMO, CASE, Link-Belt, Hitachi, Kobelco, Caterpillar, Komatsu, Volvo, XCMG… etc. in China. XCM-PARTS is CASE authorized dealer in China, we specialize in full range of genuine Case & Sumitomo spare parts, products main include monitor, controller, sensor, wiring harness, hydraulic parts, engine parts… etc. which fit to SUMITOMO excavators, CNH excavators, Link-belt excavators.

As a distributor of top-brand of hydraulic in China, we supply high quality multi brand excavator parts with hydraulic pump, hydraulic motor, final drive, hydraulic valve, regulator, etc. We proudly service client with one-step excavators parts purchasing via many plateforms like as eBay, Alibaba, Aliexpress and our company website! You can rest assured when you purchase one of our parts.

Our Advantages

. Professional maintenance service

. One-stop parts service and technical support

. Ready stock, fast dispatch from our warehouse

FAQ

How is the quality?

It is genuine and new sensor.

What Excavator model the solenoid fit?

KHJ14520 is Case / Sumitomo / Link-belt excavator solenoid valve block assembly.

How can I order it?

I will send invoice with payment information via email.

How do payment?

We accept to T/T, PayPal, Credit Card, Western Union transfer.

What's the delivery time?

Stock products estimated 3-7 days.

Do you have photo for the products?

Yes, we will send you photo before shipping.

Can you offer warranty for your products?

Yes, we offer 1-3 months warranty.

Do you have catalog?

Yes, catalog is available.
