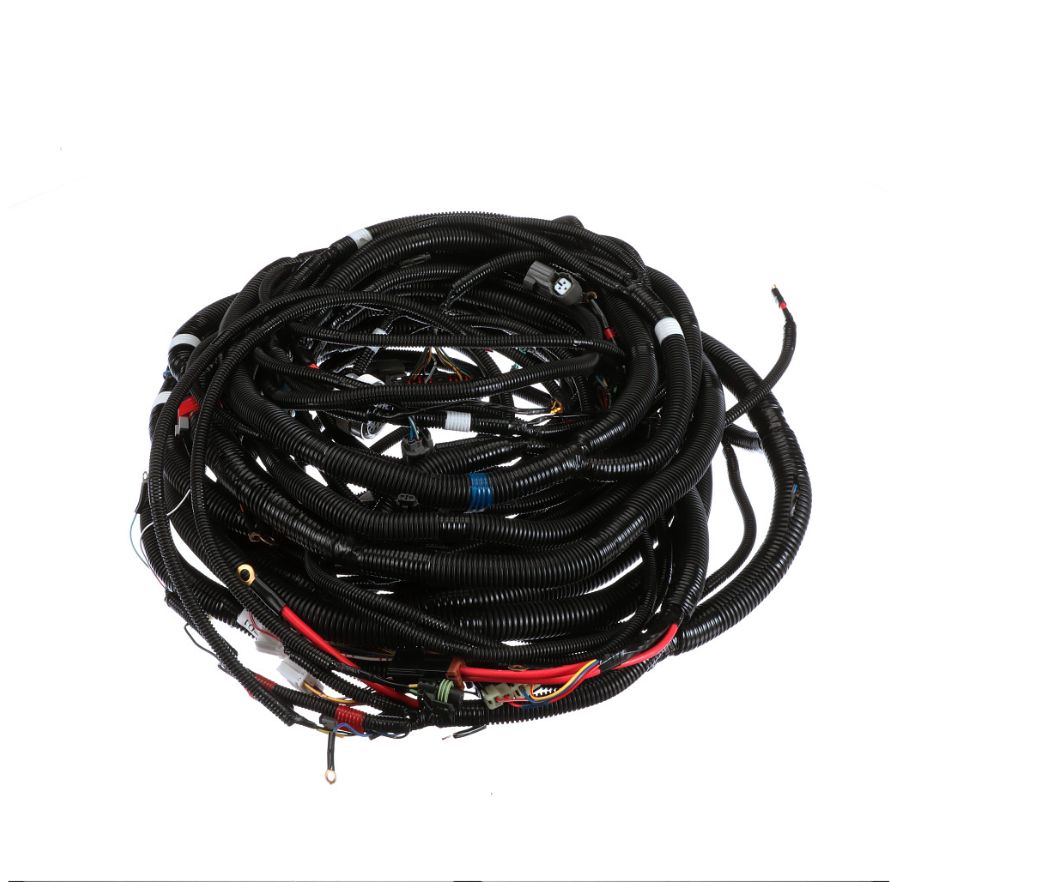

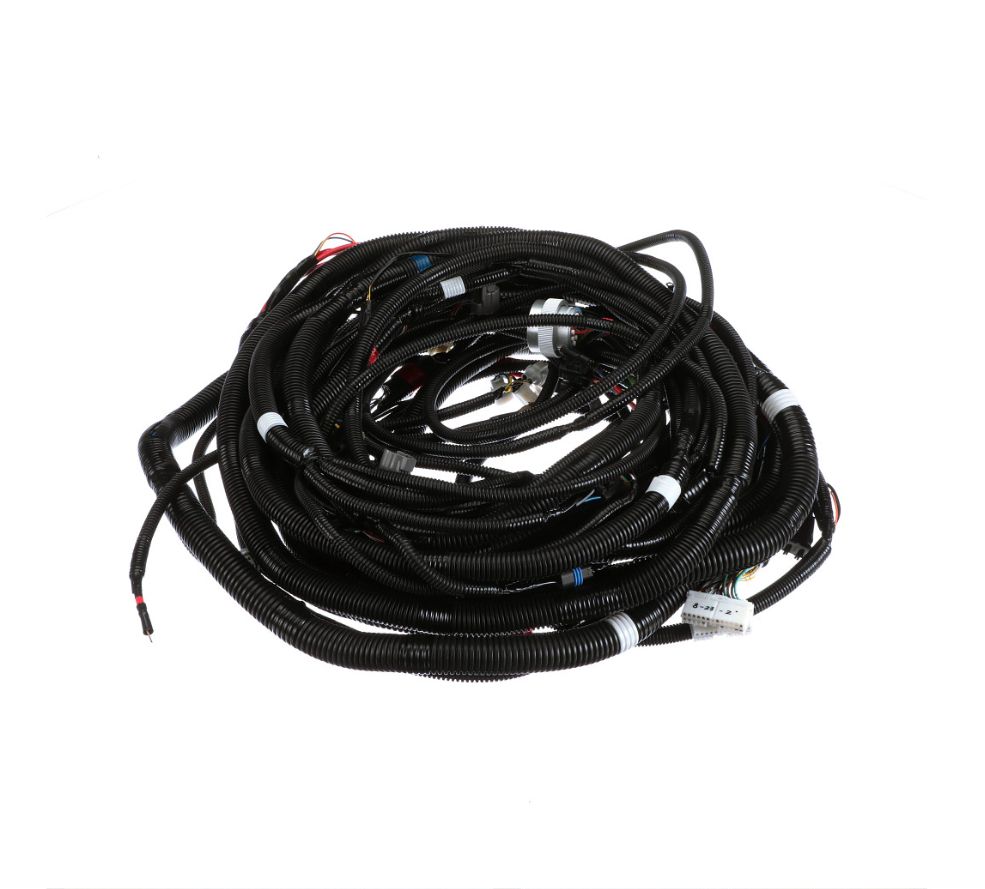

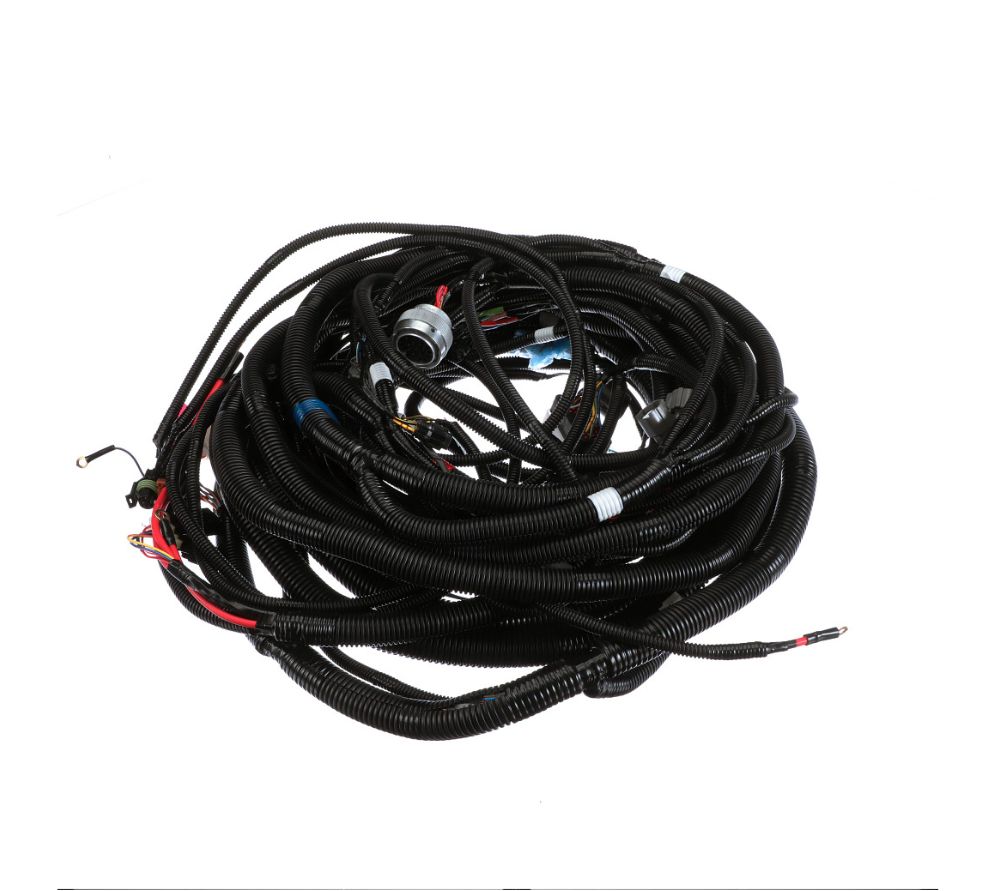

KNR10850 is external wiring harness for SH130-5 CX130B. Related engine wiring harness is KLH10620 8980350542 for Sumitomo SH120-5, SH130-5 and JCB JS130 (ISUZU 4JJ1 engine appreciation.

Core Function

KNR10850 frame wiring harness serves as the main electrical backbone of the Sumitomo SH130-5 excavator and Case CX130B excavator, connecting the upper structure, cab, engine, and lower chassis. It routes power and signal circuits for engine sensors and actuators, cab controls and instrument panel, lighting and alarm systems, hydraulic solenoid valves, and travel control circuits and swing control circuits.

Packing



KNR10850 chassis wiring harness is packed in carefully to arrive in perfect condition.

·  Inner Protection: Each harness is individually wrapped in protective film or oil

paper to prevent scratches and moisture damage.

·  Secondary Packaging: The wrapped unit is placed into original carton box with ample foam

padding to absorb shock and vibration.

·  Outer Packaging: The small carton is then packed into a standard export carton

About Us

Xiamen Sincerity Machinery Co., Ltd. is a professional company in dealing with excavator spare parts. We mainly focus on Case and Sumitomo and Link-Belt brand’s genuine components, which include pressure sensor, switch, monitor, controller, wiring harness, electric motor, relay, hydraulic pump, swing motor, travel motor, reduction gearbox, final drive, fuel pump, injector, turbocharger, liner kit, seal kit, etc. We offer high quality OEM parts that apply to Sumitomo excavator, Case excavator, Kobelco excavator, Komatsu excavator, Hitachi excavator, Caterpillar excavator etc. Our threads: Abide by contract, keep faith, and take quality and credit of contract as our tenet. At present, our company is moving towards specialization, network-based, pluralistic direction.

FAQ

Can I get a product photo?

Yes, we would like to send you real product picture.

How to check engine wiring harness?

Please check your harness label number, we also can assist to figure it out.

How to fix the wiring harness?

We have after-sale support, please contact with me to ask for help install it.

How can I order it?

I will send invoice with payment information via email.

How do payment?

We accept to T/T, PayPal, Credit Card, Western Union transfer.

What's the delivery time?

Stock products estimated 7 days.

Is there a replacement or repair warranty if a fault occurs?

Yes, we offer 1-3 months warranty for OEM products in negotiation

Is the harness currently in stock for fast shipping?

Yes, the harness is in stock and can be shipped immediately

Can it be returned if it does not match the machine's pin configuration?

Can, we can negotiate it, customers pay shipping cost for return package

Is it an exact match for my machine?

Please send me your excavator nameplate, I will check which number wiring harness match to it.
