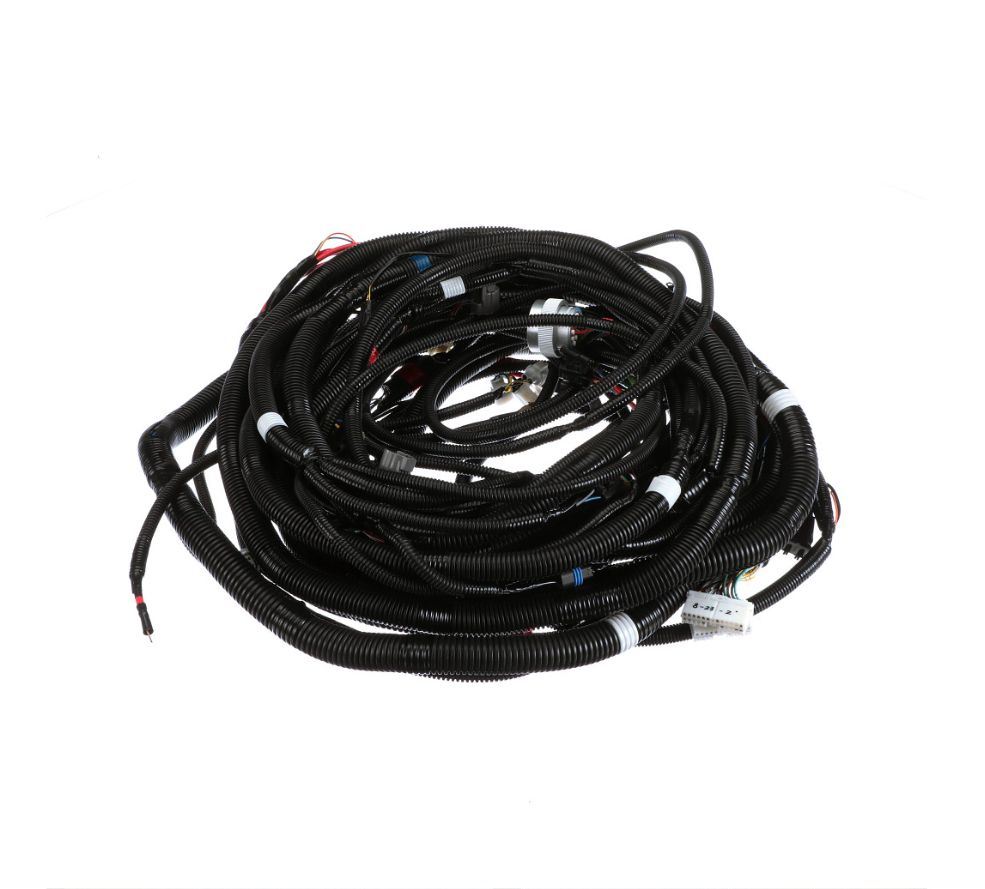

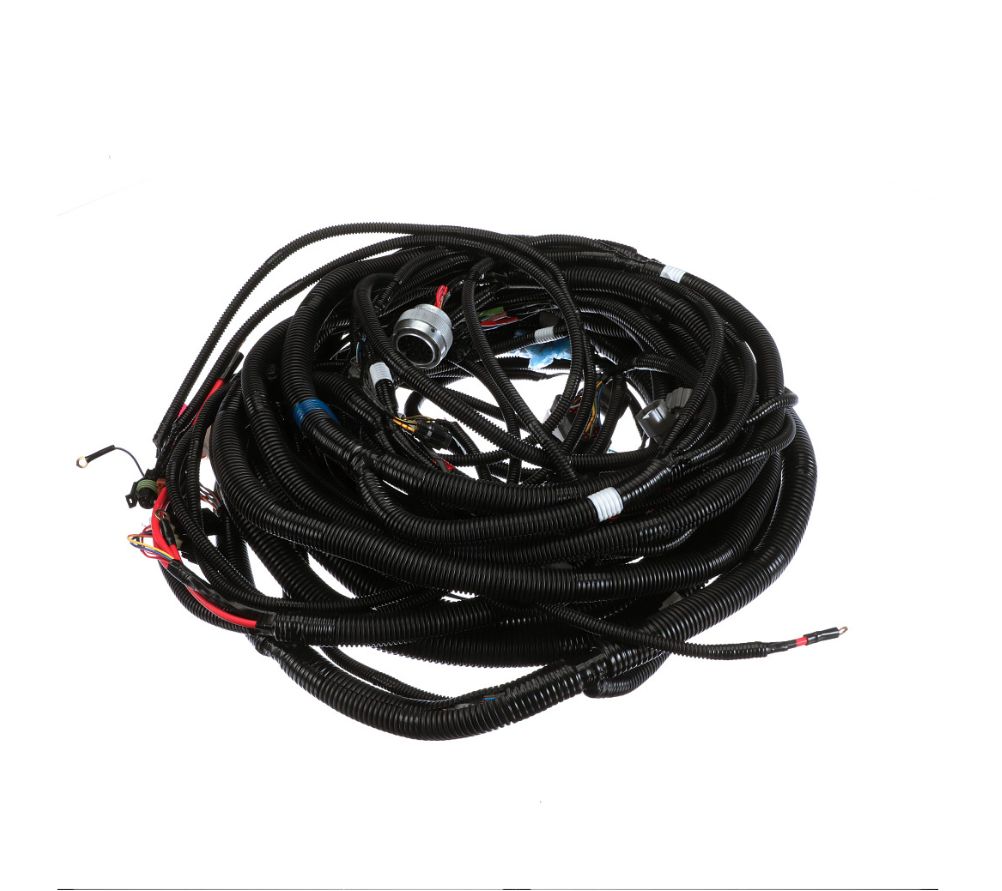

KNR12380 is frame wiring harness for SH130-6 CX130C. Related engine wiring harness is  8982443650 for ISUZU 4JJ1 engine 4JJ1-XKSS. Related number KNR13710, KNR13711 and KNR13712 is wiring harness for CX130C and SH120-6 China and Turkey manufacturer.

Frame Wiring Function

KNR12380 wiring harness serves as the main electrical backbone of the Sumitomo SH130-6 excavator, Link-belt 130X3 excavator and Case CX130C excavator, connecting the upper structure, cab, engine, and lower chassis. It routes power and signal circuits for engine sensors and actuators, cab controls and instrument panel, lighting and alarm systems, hydraulic solenoid valves, and travel control circuits and swing control circuits.

Preparation for Installing Wiring Harness

1. Preparation

• Read the manufacturer’s service manual and wiring diagram. Confirm the harness part number, connector pin out, and original routing.
• Turn off the engine, switch off the battery master switch, and disconnect the battery ground/negative terminal first.
• Wait for control units to power down before working on the harness.
• Work in a clean, dry area. Cover exposed connectors and hydraulic openings.

• Route the harness along the original path. Do not change routing unless approved by the manufacturer.
• Keep the harness away from exhaust pipes, turbochargers, hot engine parts, hydraulic lines, and moving parts such as fans, belts, linkages, and cylinders.
• Protect against abrasion, sharp edges, vibration, mud, water, oil, and fuel. Use corrugated tubing, conduit, grommets, and protective sleeves.
• Maintain the specified minimum bend radius. Do not kink, stretch, or pull the harness tight.
• Leave enough slack at articulation points, hinges, and flex joints.
• Secure the harness with OEM clips, brackets, and cable ties. Do not over-tighten ties.
• Position drain holes or drip loops downward so water cannot enter connectors.

• Use the correct sealed connectors and terminals. Make sure locks and clips are fully engaged.
• Do not force connectors. Check pin out, keying, and terminal position before mating.
• Keep signal wires away from high-current cables, alternator cables, and ignition cables. If crossing is unavoidable, cross at 90°.
• Clean ground points. Remove paint, rust, and corrosion. Tighten ground fasteners to the specified torque.
• Use sealed splices and heat-shrink tubing. Avoid splices in wet, exposed, or flexing areas.

Packing



KNR12380 frame wiring harness is packed in carefully to arrive in perfect condition.

·  Inner Protection: Each harness is individually wrapped in protective film or oil

paper to prevent scratches and moisture damage.

·  Secondary Packaging: The wrapped unit is placed into original carton box with ample foam

padding to absorb shock and vibration.

·  Outer Packaging: The small carton is then packed into a standard export carton

FAQ

Can I get a product photo?

Yes, we would like to send you real product picture.

How to check engine wiring harness?

Please check your harness label number, we also can assist to figure it out.

How to fix the wiring harness?

We have after-sale support, please contact with me to ask for help install it.

How can I order it?

I will send invoice with payment information via email.

How do payment?

We accept to T/T, PayPal, Credit Card, Western Union transfer.

What's the delivery time?

Stock products estimated 7 days.

Is there a replacement or repair warranty if a fault occurs?

Yes, we offer 1-3 months warranty for OEM products in negotiation

Is the harness currently in stock for fast shipping?

Yes, the harness is in stock and can be shipped immediately

Can it be returned if it does not match the machine's pin configuration?

Can, we can negotiate it, customers pay shipping cost for return package

Is it an exact match for my machine?

Please send me your excavator nameplate, I will check which number wiring harness match to it.
