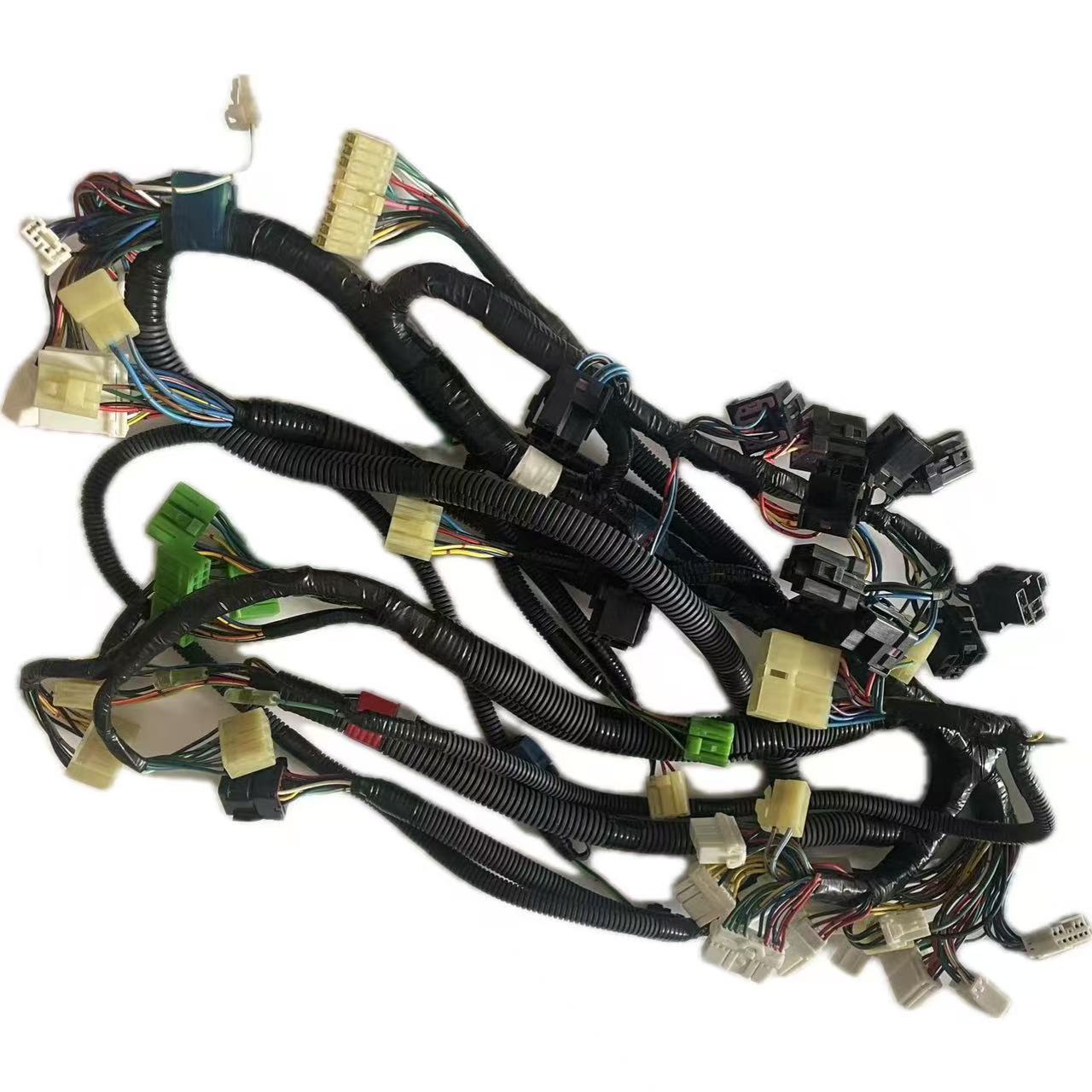

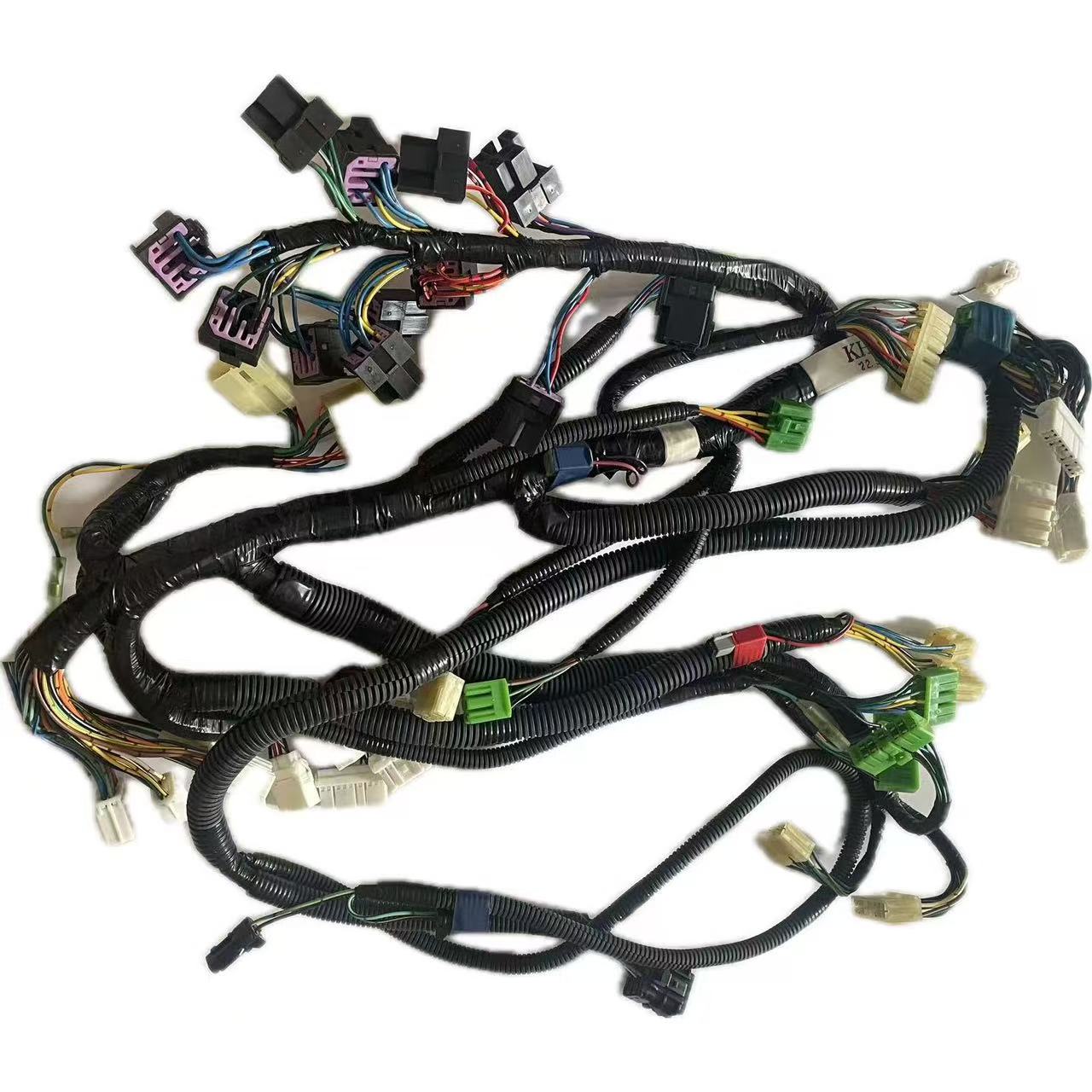

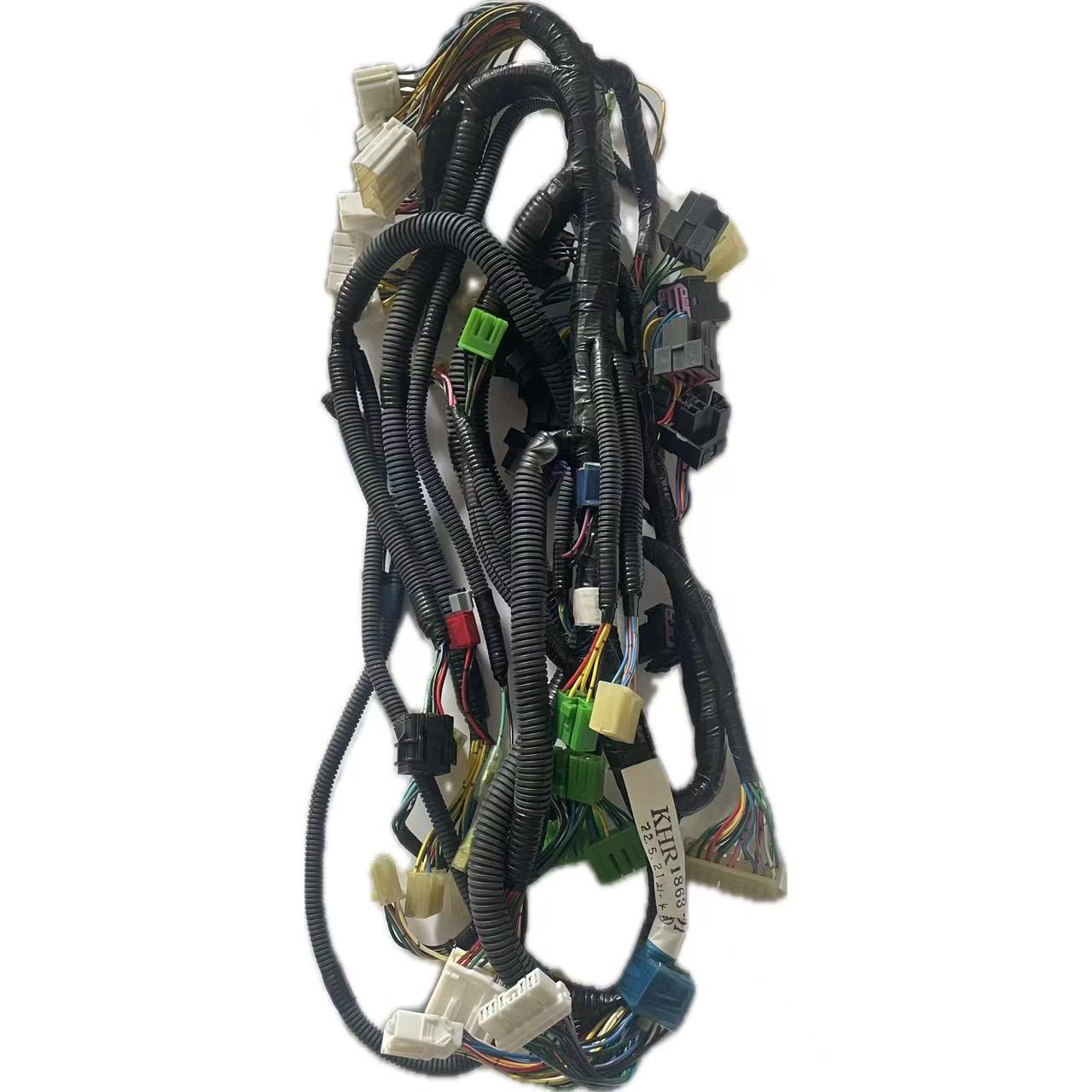

Case Excavator Wire Harness KHR1863

KHR1863 is cab harness compatible model Sumitomo SH200A1, Case 9010B 9020B 9030B 9040B, related machine controller KHR1794, frame harness 164706A1 (165801A1), monitor KHR2125 and engine controller KRH10020. It fit ISUZU 6BG1 engine type.

Routing The Cab Wire Harness

For a model-specific procedure, provide the excavator brand/model and the cab harness connector layout.

1. Route the harness along the original OEM path. Do not change routing unless approved by the manufacturer.
2. Pass the harness through the firewall/bulkhead grommet. Make sure the grommet is correctly seated and sealed.
3. Keep the harness away from pedals, seat rails, door mechanisms, sharp edges, hot surfaces, and moving parts.
4. Maintain the specified minimum bend radius. Do not kink, stretch, or pull the harness tight.
5. Leave enough slack at flex points, cab mounts, and connector ends.
6. Keep CAN bus and signal wires away from high-current power wires. If crossing is unavoidable, cross at 90°.
7. Position drain loops downward so water cannot enter connectors.

Packing

KHR1863 cab wiring harness is packed in carefully to arrive in perfect condition.

Inner Protection: Each harness is individually wrapped in protective film or oil paper to prevent scratches and moisture damage.

Secondary Packaging: The wrapped unit is placed into original Sumitomo & Case carton box with ample foam padding to absorb shock and vibration.

Outer Packaging: The small carton is then packed into a standard export carton

Company Profile

KRR1783 is a confirmed main wiring harness (cab harness) for the Sumitomo SH200-1 and Case 9030b excavators. It serves as the primary electrical backbone for engine, cab, and hydraulic control systems. Available through aftermarket suppliers as an OEM-compatible replacement. Always verify the part number on the original harness or consult us (Sumitomo/Case dealer) with the machine serial number before ordering, to make sure this number of harness can fit to your machine completely.

XCM-PARTS Corporation was founded on April 24th, 2014, with its headquarters located in Tongan District, Xiamen, China. As a specialized maintenance service supplier, we offer a comprehensive range of electric, hydraulic, and engine parts for excavators manufactured by leading excavator brands. Our efficient and expedient service ensures that we can promptly source the exact parts you require.

This indicates that the majority of our components are authentic! Additionally, we have the capability to provide top-notch hydraulic components used for Komatsu, Volvo, Kobelco, Hitachi, Caterpillar and other excavator brands. We take great pride in catering to the construction machinery parts market through various platforms . You can be confident in your purchase of any of our parts.

One-stop parts shop, pre-sale maintenance guidance, after-sale technical service.

FAQ

Can I get a product photo?

Yes, we would like to send you real product picture.

How to check engine wiring harness?

Please check your harness label number, we also can assist to figure it out.

How to fix the wiring harness?

We have after-sale support, please contact with me to ask for help install it.

How can I order it?

I will send invoice with payment information via email.

How do payment?

We accept to T/T, PayPal, Credit Card, Western Union transfer.

What's the delivery time?

Stock products estimated 7 days.

Is there a replacement or repair warranty if a fault occurs?

Yes, we offer 1-3 months warranty for OEM products in negotiation

Is the harness currently in stock for fast shipping?

Yes, the harness is in stock and can be shipped immediately

Can it be returned if it does not match the machine's pin configuration?

Can, we can negotiate it, customers pay shipping cost for return package

Is it an exact match for my machine?

Please send me your excavator nameplate, I will check which number wiring harness match to it.
