Case Wire Harness KRR12930 KRR17710 KRR19720

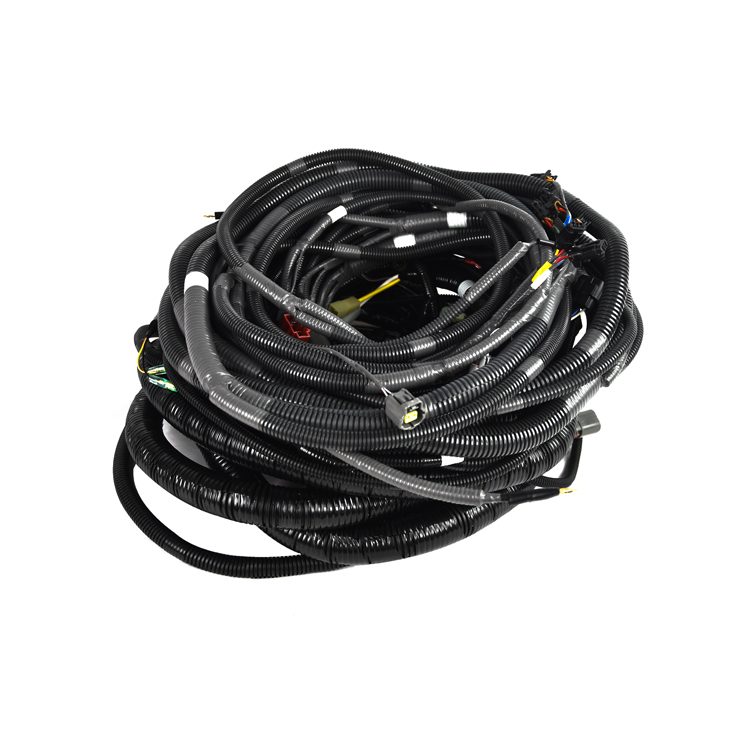

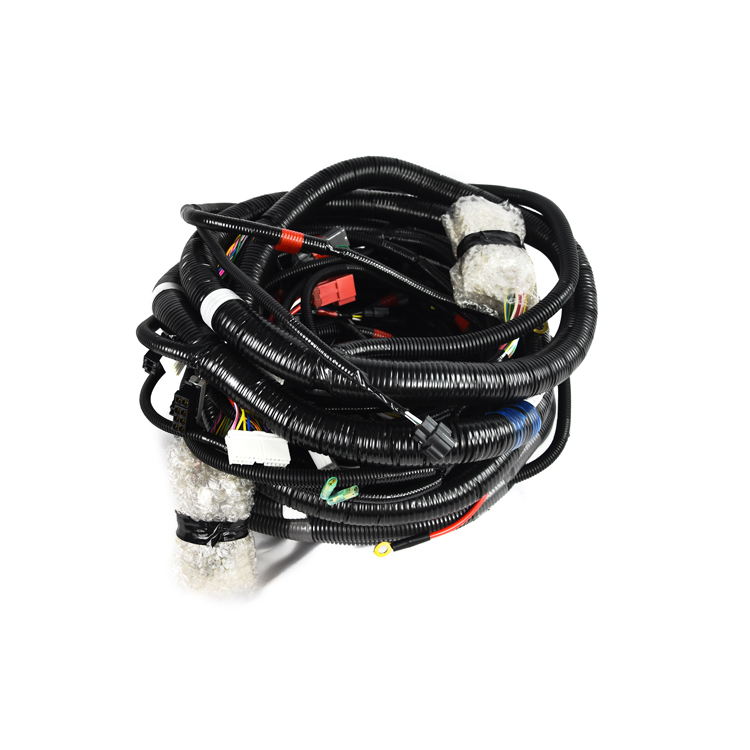

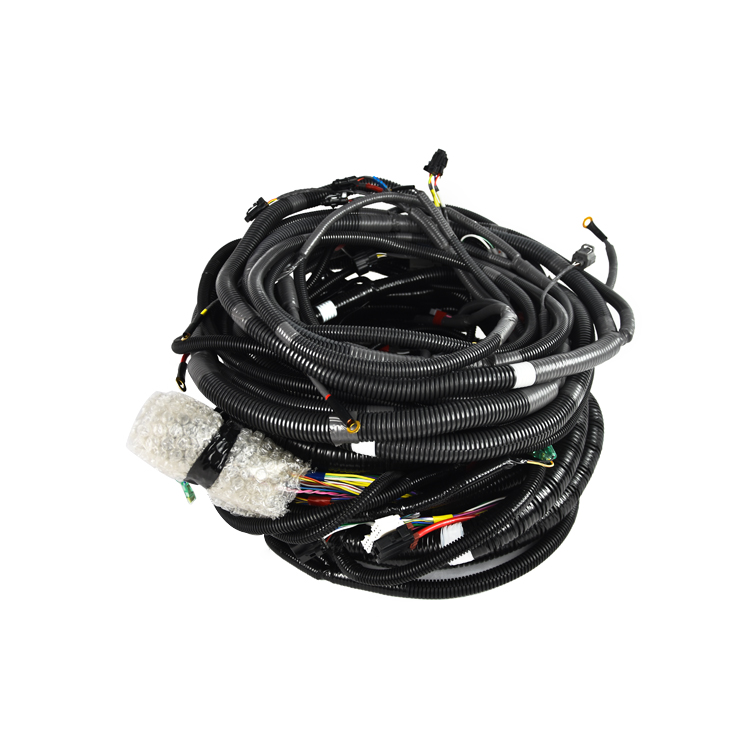

Excavator Frame Wiring harness KRR19720 is specifically designed as a chassis Line wiring harness for Link-belt excavator, Sumitomo excavator, Case excavator. It links engine controller (ECM) to engine and all hydraulic sensors as hydraulic pump, swing motor, travel motor, control valve, it also connects to solenoid and other electronic parts.

Compatibility

KRR19720 frame wire harness is original cable color, cable number, and part number.

The Japan standard is equivalent to the square copper wire that comes with the original machine. There's a shielded cable and a big original plug (brand - new original), along with original pins.

The small plugs are from brands like DEUTSCH and JONHON. They're fire - resistant, oil - resistant, and heat - resistant.

FYI, the Link-belt/Case machine won't work at all without the original plugs and pins. The machine vibrates a lot, and the pins will come loose or fall out soon.

• Case CX-B excavators: CX210B CX220B CX240B
• Sumitomo SH-5 excavators: SH200-5 SH210-5 SH220-5 SH240-5
• Link-belt excavators: 210X2 240X2

Common Fault and Causes

1. Open Circuit / Broken Wire

• Broken conductor strands due to repeated flexing.
• Pulled or loose terminal in a connector.
• Corroded wire inside insulation.
• Harness stretched too tight at articulation points.

2. Short Circuit to Ground

• Insulation rubbed through on the frame, cab, or hydraulic lines.
• Water ingress in a connector.
• Damaged harness conduit or missing grommet.

3. Short Circuit to Power

• Melted insulation touching a power wire.
• Incorrect repair or wrong connector pinout.
• Water bridging terminals in a connector.

4. High Resistance / Poor Contact

• Loose terminal tension.
• Corroded or oxidized pins.
• Partially broken wire strands.
• Contaminated connector seals.

5. Water Ingress and Corrosion

• Damaged connector seals.
• Missing cavity plugs.
• Drain loops facing upward.
• Harness routed through water traps.

6. Abrasion and Chafing

• Loose clamps or missing brackets.
• Routing near sharp edges, frame holes, or moving parts.
• Harness rubbing against hydraulic hoses.

7. Heat Damage

• Routing too close to exhaust manifold, turbocharger, or EGR components.
• Missing heat shields or reflective sleeves

8. Vibration Fatigue

• Harness too tight at flex points.
• Poor support at connectors.
• Repeated bending at boom, arm, and cab entry points.

9. Electromagnetic Interference (EMI)

• Erratic sensor signals.
• Signal wires routed parallel to high-current cables.
• Missing shielding or poor grounding.
• Alternator or radio interference.

10. Ground Faults

• Loose, corroded, or painted ground points.
• Broken ground strap.
• High resistance in ground circuit.

11. CAN Bus Communication Faults

• Open or short in CAN high/low twisted pair.
• Incorrect terminating resistance.
• Water in a CAN connector.
• Shield shorted to ground.

12. Rodent, UV, and Chemical Damage

• Rodent nesting.
• Long-term sunlight exposure.
• Contact with fuel, oil, or hydraulic fluid.

Packing

KRR17710 External Wring Harness is packed in carefully to arrive in perfect condition.

• Inner Protection: Each harness is individually wrapped in protective film or oil paper to prevent scratches and moisture damage.
• Secondary Packaging: The wrapped unit is placed into original Sumitomo & Case carton box with ample foam padding to absorb shock and vibration.
• Outer Packaging: The small carton is then packed into a standard export carton

FAQ

Can I get a product photo?

Yes, we would like to send you real product picture.

Does it fit to my machine?

Please send me your machine nameplate or monitor number to me for checking.

How can I order it?

I will send invoice with payment information via email.

How do payment?

We accept to T/T, PayPal, Credit Card, Western Union transfer.

What's the delivery time?

Stock products estimated 7 days.

Is there a replacement or repair warranty if a fault occurs?

Yes, we offer 1-3 months warranty for OEM products in negotiation

What is the machine's maintenance history?

Enter your case monitor maintenance interface, review past service records and major component rebuilds

Is the harness currently in stock for fast shipping?

Yes, the harness is in stock and can be shipped immediately

Can it be returned if it does not match the machine's pin configuration?

Can, we can negotiate it, customers pay shipping cost for return package

Is it an exact match for my machine?

Please send me your excavator nameplate, I will check which number wiring harness match to it.
