Specification

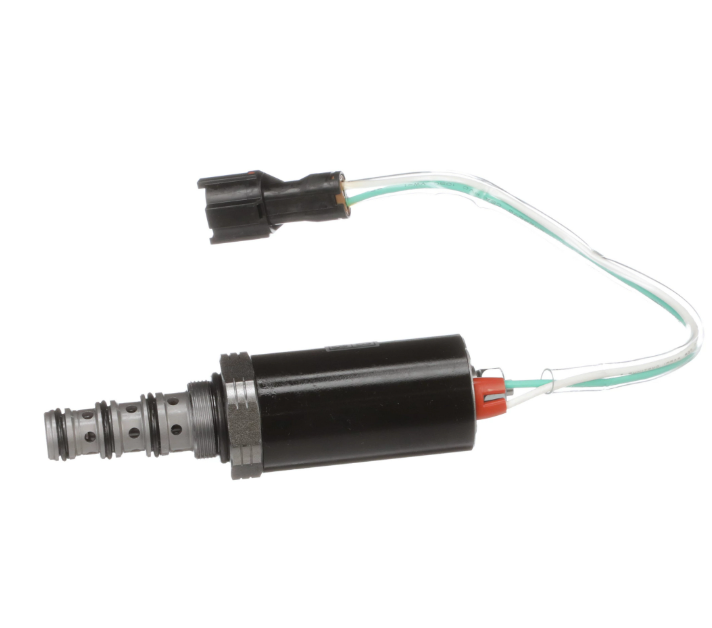

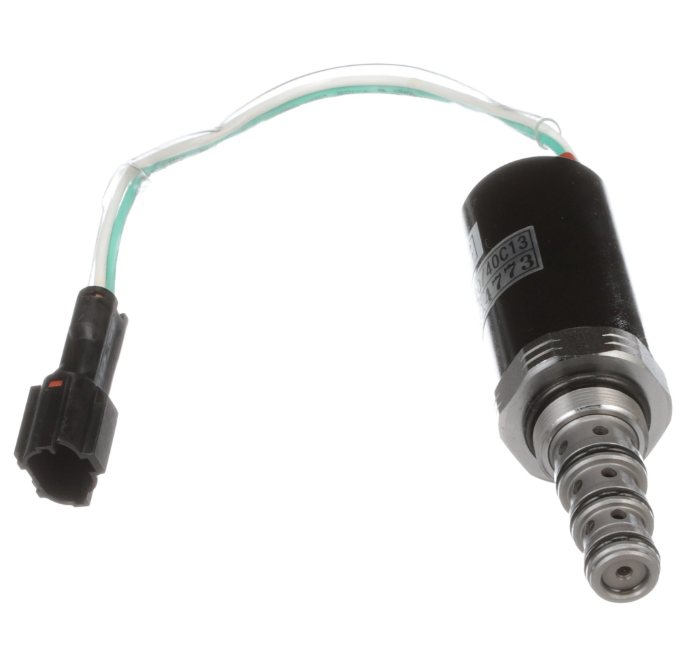

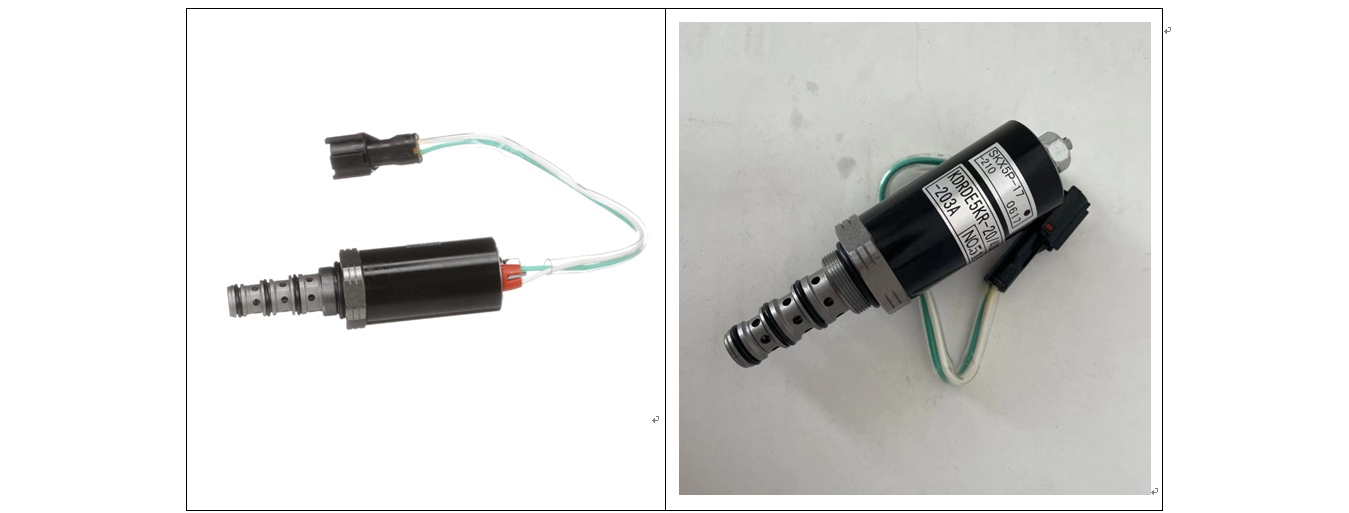

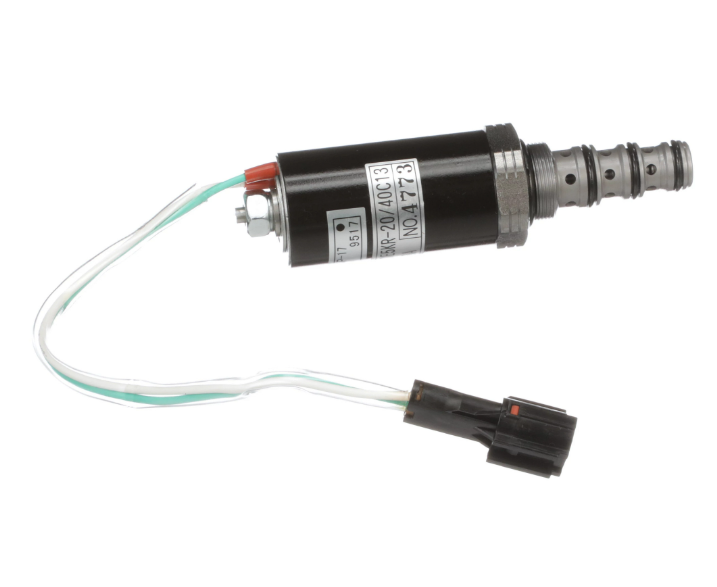

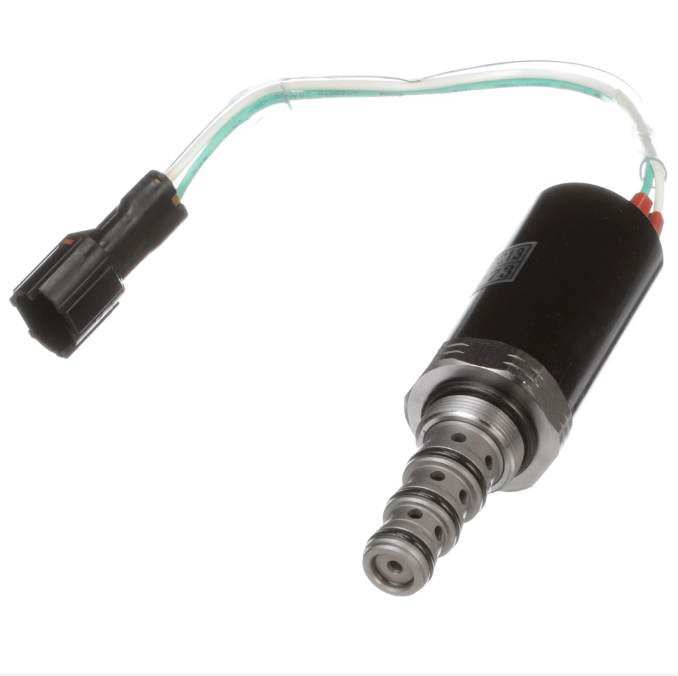

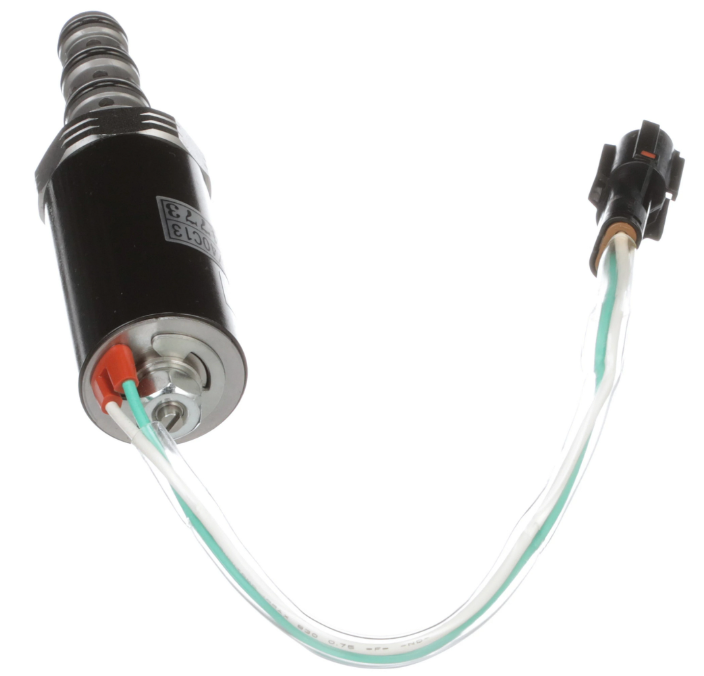

The LJ00684 is a power proportional solenoid valve (also referred to as a pump power proportional solenoid valve or hydraulic pump proportional solenoid) used in Sumitomo and CASE hydraulic excavators. It is an electro-hydraulic actuator that regulates the hydraulic pump power output by controlling the pump regulator's swash plate angle. The valve converts electrical current from the ECM into mechanical force, thereby adjusting the pump displacement to match engine power and workload demand.

LJ00684 Power solenoid valve is use for Sumitomo SH200-5 SH210-5 SH240-5 SH350-5 Case CX130 CX135SR CX160 CX210 CX240 CX290 CX330 CX350 CX700 CX800 Link-belt 130X2 130X3 210X2 240X3 350X3 370X2 450X2 470X2 490X3

1. Fit Sumitomo excavator: SH200-5, SH210-5, SH240-5, SH350-5;
2. Fit CASE excavator: CX130, CX135SR, CX160, CX210, CX240, CX290, CX330, CX350, CX700, CX800;
3. Fit New Holland excavator: E805
4. Fit excavator Link-belt: 130X2 130X3 210X2 240X3 350X3 370X2 450X2 470X2 490X3

Instruction for Use

The LJ00684 solenoid valve is mounted directly on the main hydraulic pump (pump regulator assembly), located beneath the rotating platform of the excavator. It is part of the pump control solenoid valve assembly that regulates the swash plate angle of the variable displacement pump. On Sumitomo SH200-5, SH210-5, SH240-5, and SH350-5 models, the LJ00684 is listed as the power proportional solenoid valve for the K3V160DTP pump. The same part number is listed for CASE CX-series excavators in the hydraulic pump control system section. The valve is typically mounted alongside the pump flow proportional valve (part number KHJ15460 assembly, fault code 7241), forming a pair of proportional solenoids that together manage pump output and power limiting.

The pump control system uses two distinct proportional solenoids on the pump regulator:

· LJ00684 — Power proportional solenoid (fault code 7240): Limits pump output based on engine load, preventing overload and stall.

· Flow proportional solenoid (fault code 7241): Regulates pump flow based on operator command and work mode.

About XCM-PARTS

Xiamen Sincerity Machinery Co., Ltd. is CASE authorized dealer in China, we specialize in full range of genuine Case Sumitomo and Linkbelt Excavator spare parts, products main include monitor, controller, pressure sensor, wiring harness, hydraulic pump, hydraulic swing motor, hydraulic travel motor, final drive, gearbox reduction, hydraulic repair kits, engine injector, engine turbocharger, engine gasket kit, engine liner kit, engine water pump, engine oil pump, engine overhaul gasket set, etc. which fit to SUMITOMO excavators, CNH excavators, Link-belt excavators.

Over the years, we have actively participated in China’s premier construction machinery exhibitions. These shows serve as vital platforms where we connect with the global engineering community, showcase our premium excavator parts, and stay ahead of market trends. Our consistent presence at these exhibitions has been instrumental in expanding our footprint across high-growth markets. Today, we proudly serve customers in South America, North America, the Middle East, and Russia—regions where our full range of parts and responsive service have earned growing trust and repeat business Whether you are a new contact exploring collaboration or an existing partner seeking continued support, we welcome the opportunity to meet face-to-face at our next show. Let’s build a stronger future together—one project, one part, one partnership at a time.

Customer Overviews

XCM-PARTS company work at excavator after-sales market over 20 years, customer satisfaction is the foundation of our business. We are dedicated to delivering high-quality products, professional support, and timely service that meet and exceed customer expectations. We actively listen to customer feedback, respond quickly to their needs, and continuously improve our products and processes. By building trust and creating lasting value, we strive to establish long-term partnerships with every customer.

FAQ

How is the quality?

It is genuine and new solenoid valve.

What Excavator model the solenoid fit?

LL001140 is Case / Sumitomo / Link-belt excavator solenoid

How can I order it?

I will send invoice with payment information via email.

How do payment?

We accept to T/T, PayPal, Credit Card, Western Union transfer.

What's the delivery time?

Stock products estimated 3-7 days.

Do you have photo for the products?

Yes, we will send you photo before shipping.

Can you offer warranty for your products?

Yes, we offer 1-3 months warranty.

Do you have catalog?

Yes, catalog is available.

Dose it same quality of KPM brand?

Yes, it is genuine factory KPM Japan.
