Specification and Model

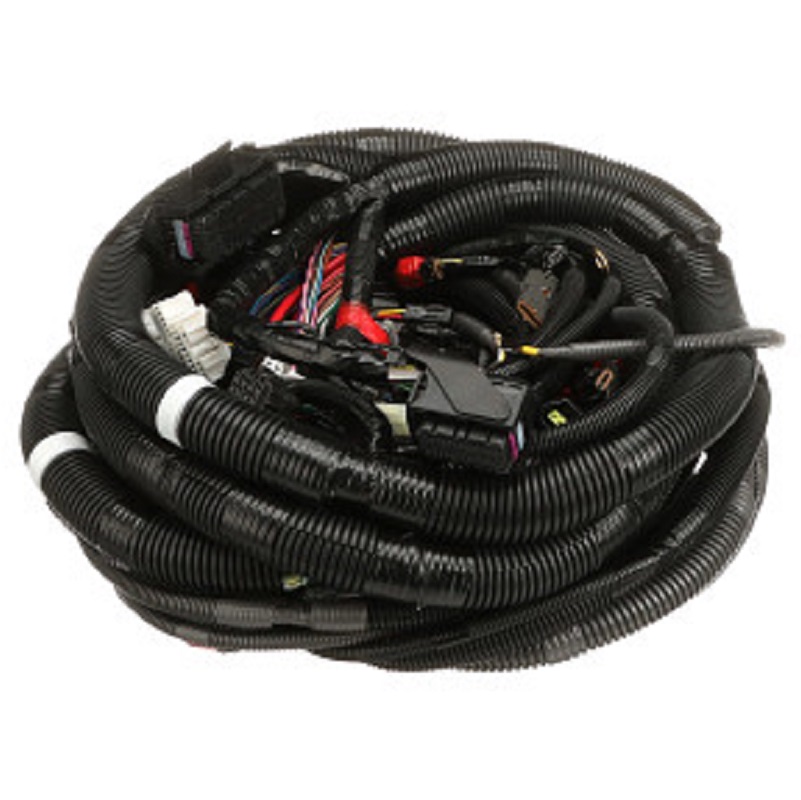

This frame main wire harness is an aftermarket or OEM replacement part primarily listed for CASE CX210C CX220C CX240C excavator and Sumitomo SH200-6 SH210-6 SH220-6 and SH240-6 excavator or Linkbelt 210X3 240X3 excavator models. Its application domain is strictly the external electrical architecture of these hydraulic excavators—meaning it is the main wiring backbone for the engine compartment, hydraulic pump area, and chassis-mounted components, as opposed to the internal cab harness (like the KHR52230 previously discussed). It is responsible for carrying critical signals for engine management, hydraulic pump control, and sensor feedback to the main ECU.

Typical Construction

Note: Public technical datasheets for KRR22462 do not disclose specific wire gauges or connector pin outs. However, based on standard construction machinery harness engineering, it is built to withstand severe vibration, moisture, and temperature extremes.

The structure typically consists of multi-core, oil-resistant, and heat-resistant copper wires bundled together. The insulation is usually a durable thermoplastic or cross-linked polyethylene (XLPE) material. The entire bundle is wrapped in a protective abrasion-resistant conduit or tape, and terminated with sealed, positive-lock connectors (often Deutsch or equivalent) to prevent moisture intrusion and ensure a secure connection in the harsh external environment of an excavator.

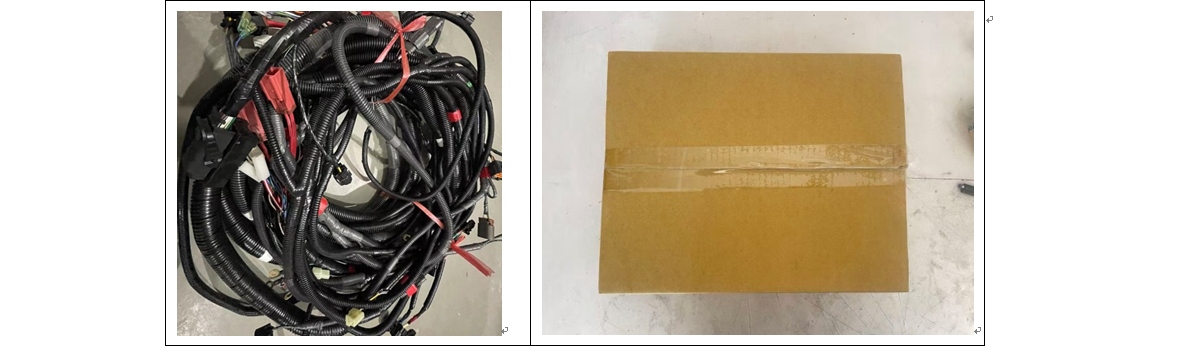

Photo and Packing

KRR22463 wiring harness is packed in carefully to arrive in perfect condition.

1. Inner Protection: Each harness is individually wrapped in protective film or oil paper to prevent scratches and moisture damage.
2. Secondary Packaging: The wrapped unit is placed into original carton box with ample foam padding to absorb shock and vibration.
3. Outer Packaging: The small carton is then packed into a standard export carton

About XCM-PARTS

Xiamen Sincerity Machinery Co., Ltd. is CASE authorized dealer in China, we specialize in full range of genuine Case Sumitomo and Linkbelt Excavator spare parts, products main include monitor, controller, pressure sensor, wiring harness, hydraulic pump, hydraulic swing motor, hydraulic travel motor, final drive, gearbox reduction, hydraulic repair kits, engine injector, engine turbocharger, engine gasket kit, engine liner kit, engine water pump, engine oil pump, engine overhaul gasket set, etc. which fit to SUMITOMO excavators, CNH excavators, Link-belt excavators.

Over the years, we have actively participated in China’s premier construction machinery exhibitions. These shows serve as vital platforms where we connect with the global engineering community, showcase our premium excavator parts, and stay ahead of market trends. Our consistent presence at these exhibitions has been instrumental in expanding our footprint across high-growth markets. Today, we proudly serve customers in South America, North America, the Middle East, and Russia—regions where our full range of parts and responsive service have earned growing trust and repeat business Whether you are a new contact exploring collaboration or an existing partner seeking continued support, we welcome the opportunity to meet face-to-face at our next show. Let’s build a stronger future together—one project, one part, one partnership at a time.

Customer Overviews

XCM-PARTS company work at excavator after-sales market over 20 years, customer satisfaction is the foundation of our business. We are dedicated to delivering high-quality products, professional support, and timely service that meet and exceed customer expectations. We actively listen to customer feedback, respond quickly to their needs, and continuously improve our products and processes. By building trust and creating lasting value, we strive to establish long-term partnerships with every customer.

FAQ

Does it the highest quality?

Yes, It is genuine and new wire harness.

What brand of Excavator fit to?

It fit to Case Sumitomo and Link-belt excavator.

How can I order it?

I will send invoice with payment information via email.

How do payment?

We accept to T/T, PayPal, Credit Card, Western Union transfer.

What's the delivery time?

Stock products estimated 3-7 days.

Do you have photo for the products?

Yes, we will send you photo before shipping.

Can you offer warranty for your products?

Yes, we offer 1-3 months warranty.

Do you have catalog?

Yes, catalog is available.
