Specification and Model

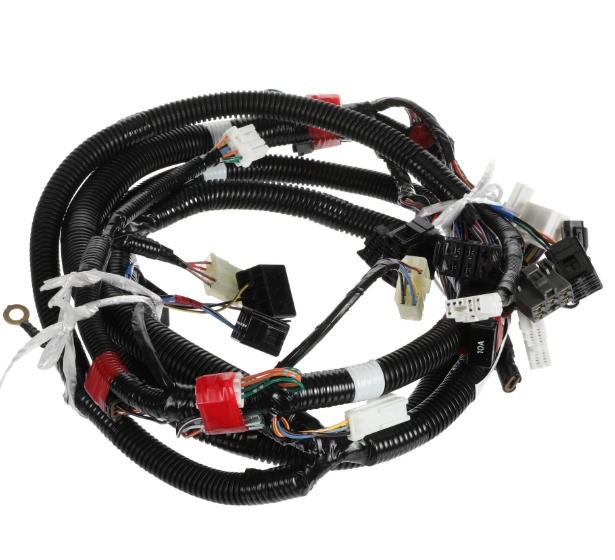

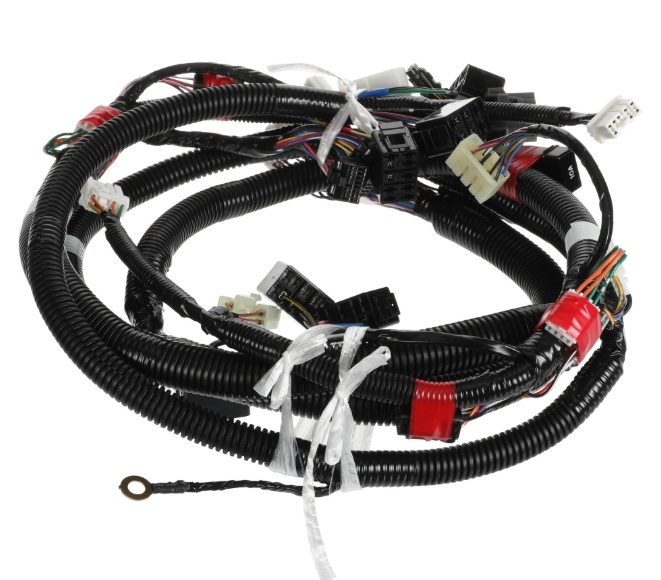

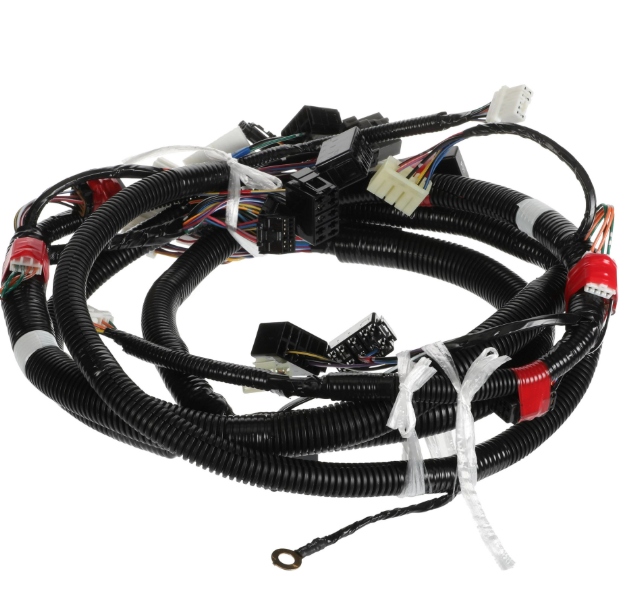

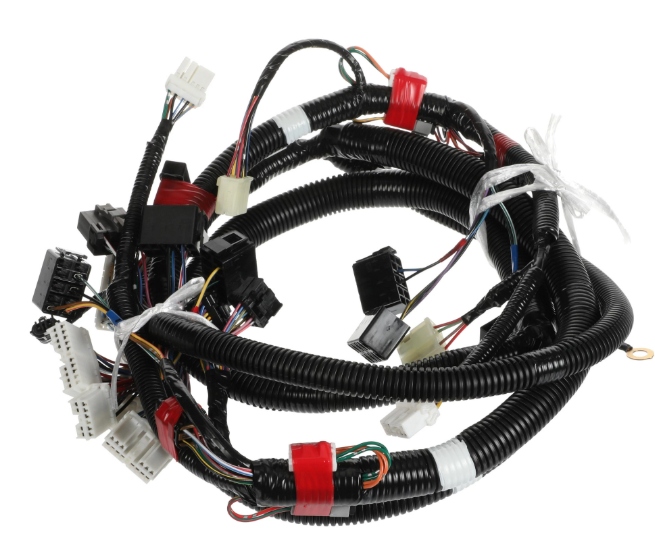

KHR30860 KHR30861 KHR30862 KHR50190 KHR50191 is a cab console wiring harness used across Sumitomo and CASE excavator, serving as the central electrical backbone for the cab (operator station) and connecting it to the machine’s left and right operator console switches.

Common Description:

SH130-6 console wire harness, SH200-6 console wire harness, SH210-6 console wire harness, SH240-6 console wire harness, SH260-6 console wire harness, SH300-6 console wire harness, SH360-6 console wire harness, SH380-6 console wire harness, SH480-6 console wire harness, SH490-6 console wire harness, SH500-6 console wire harness, CX130C console wire harness, CX210C console wire harness, CX220C console wire harness, CX240C console wire harness, CX250C console wire harness,CX260C console wire harness, CX300C console wire harness, CX370C console wire harness, CX350C console wire harness, CX380C console wire harness, CX490C console wire harness, CX500C console wire harness, Linkbelt 130X3 wire harness, Linkbelt 210X3 wire harness, Linkbelt 240X3 wire harness, Linkbelt 350X3 wire harness, Linkbelt 370X3 wire harness, Linkbelt 470X3 wire harness.

Common Symptoms

Multiple warning lights illuminating simultaneously on the monitor panel.

· Loss of communication with cab-mounted controllers or the monitor.

· Erratic operation of joysticks, pedals, or switches that rely on signals passing through the cab harness.

· Intermittent or complete loss of power to cab accessories (lights, wipers, horn).

· Engine derate or shutdown if the harness carries critical communication or sensor circuits between the cab and the main ECU.

Because KHR30861 is a passive wiring harness, it does not have a single dedicated fault code. A failure manifests as a cluster of circuit-specific DTCs on the machine’s diagnostic system. The most reliable diagnostic path is to consult the electrical schematic for the specific machine model (e.g., SH240-6 or the corresponding CASE CX series) and trace the circuits shared by the affected components through the KHR30861 harness.

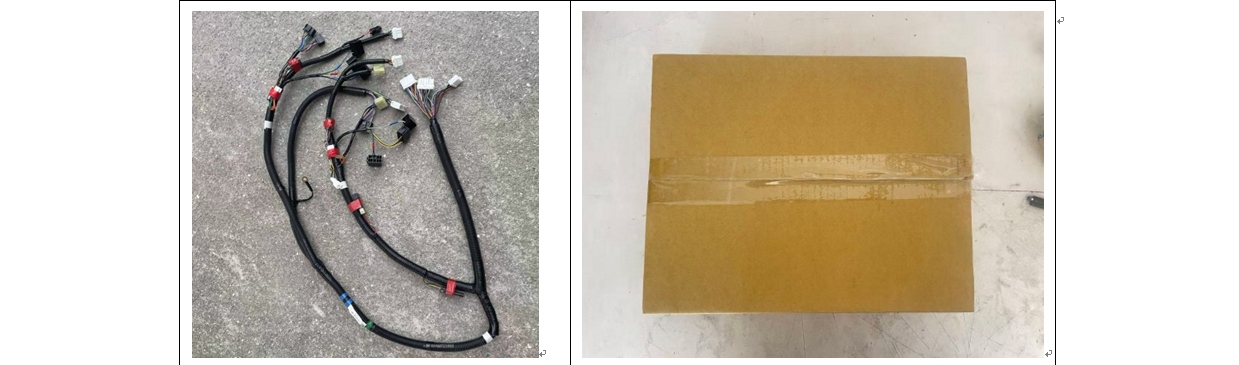

Photo and Packing

KHR30861 wiring harness is packed in carefully to arrive in perfect condition.

1. Inner Protection: Each harness is individually wrapped in protective film or oil paper to prevent scratches and moisture damage.
2. Secondary Packaging: The wrapped unit is placed into original carton box with ample foam padding to absorb shock and vibration.
3. Outer Packaging: The small carton is then packed into a standard export carton

Customer Overviews

XCM-PARTS company work at excavator after-sales market over 20 years, customer satisfaction is the foundation of our business. We are dedicated to delivering high-quality products, professional support, and timely service that meet and exceed customer expectations. We actively listen to customer feedback, respond quickly to their needs, and continuously improve our products and processes. By building trust and creating lasting value, we strive to establish long-term partnerships with every customer.

About XCM-PARTS

Xiamen Sincerity Machinery Co., Ltd. is CASE authorized dealer in China, we specialize in full range of genuine Case Sumitomo and Linkbelt Excavator spare parts, products main include monitor, controller, pressure sensor, wiring harness, hydraulic pump, hydraulic swing motor, hydraulic travel motor, final drive, gearbox reduction, hydraulic repair kits, engine injector, engine turbocharger, engine gasket kit, engine liner kit, engine water pump, engine oil pump, engine overhaul gasket set, etc. which fit to SUMITOMO excavators, CNH excavators, Link-belt excavators.

Over the years, we have actively participated in China’s premier construction machinery exhibitions. These shows serve as vital platforms where we connect with the global engineering community, showcase our premium excavator parts, and stay ahead of market trends. Our consistent presence at these exhibitions has been instrumental in expanding our footprint across high-growth markets. Today, we proudly serve customers in South America, North America, the Middle East, and Russia—regions where our full range of parts and responsive service have earned growing trust and repeat business Whether you are a new contact exploring collaboration or an existing partner seeking continued support, we welcome the opportunity to meet face-to-face at our next show. Let’s build a stronger future together—one project, one part, one partnership at a time.

FAQ

Does it the highest quality?

Yes, It is genuine and new wire harness.

What brand of Excavator fit to?

It fit to Case Sumitomo and Link-belt excavator.

How can I order it?

I will send invoice with payment information via email.

How do payment?

We accept to T/T, PayPal, Credit Card, Western Union transfer.

What's the delivery time?

Stock products estimated 3-7 days.

Do you have photo for the products?

Yes, we will send you photo before shipping.

Can you offer warranty for your products?

Yes, we offer 1-3 months warranty.

Do you have catalog?

Yes, catalog is available.
