Case Excavator Wire Harness KHR16122

The KHR16122 is a cab wiring harness (HARNES) designed for Link-Belt, Sumitomo and Case excavators. It serves as the main electrical wiring assembly for the operator cab, facilitating power distribution and signal transmission between the cab's electronic components and the machine's control systems.

• KHR16122 is console left harness (also named joystick harness), it related number is KHR16121, KHR16120, KHR17290, KHR17291
• KHR16112 is console right harness (also named switch starter wire harness), it related number is KHR16110, KHR16111, KHR15980, KHR15981

Specification

Range of application for KHR16122 wire harness:

• Case excavators CX-B: CX130B CX160B CX180B CX210B CX220B CX230B CX240B CX290B CX300B CX350B CX360B CX370B CX470B CX800B
• Sumitomo excavators SH-5: SH120-5 SH130-5 SH200-5 SH210-5 SH240-5 SH300-5 SH330-5 SH350-5 SH360-5 SH380-5 SH450-5 SH460-5 SH480-5 SH700-5 SH800-5
• Link-belt excavators X2: 130x2 210x2 240x2 350x2 370x2 470x2

The KHR16112 wire harness connects the

cab's electrical accessories—including the dashboard, display panel, switches, and sensors—to the machine's main power and control network. It is engineered to withstand the harsh operating conditions of construction equipment, offering resistance to vibration, moisture, and temperature fluctuations typical of

excavator environments.

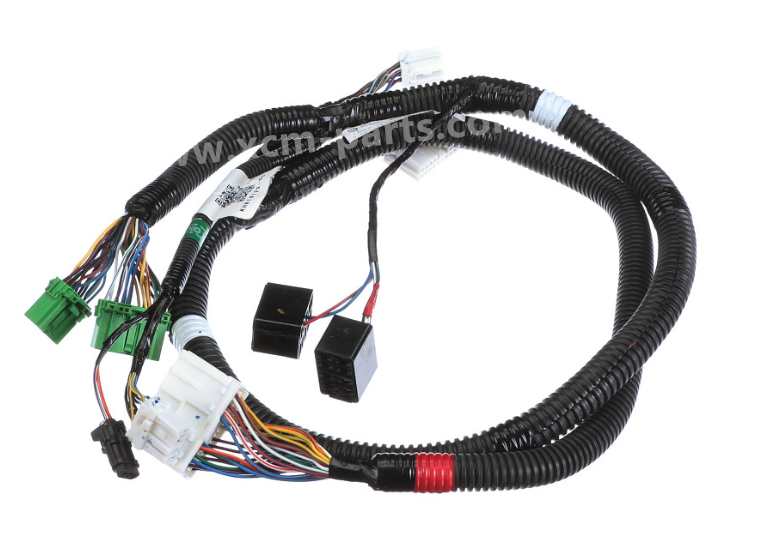

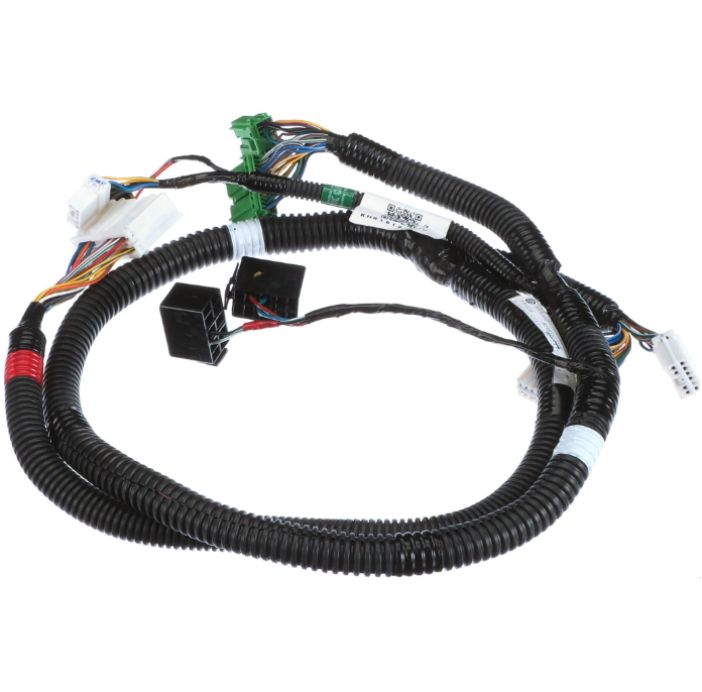

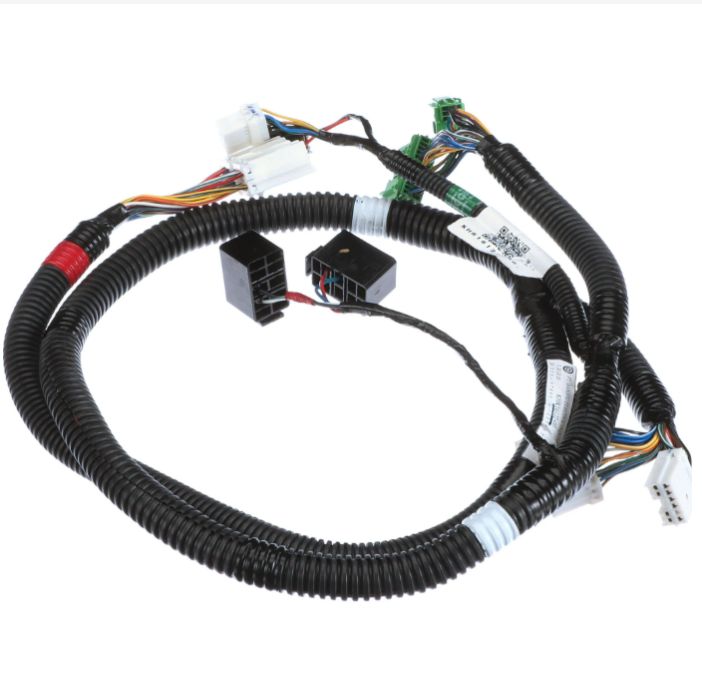

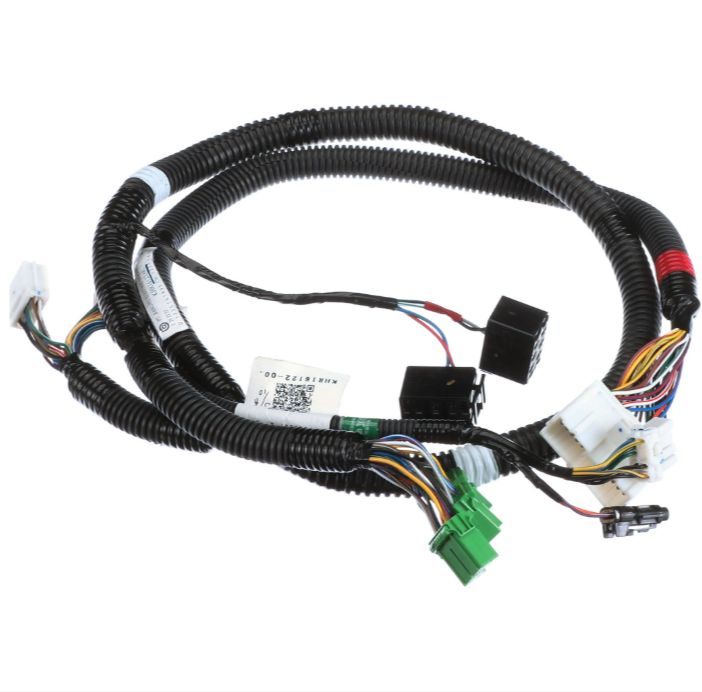

Harness Real Photo

FAQ

Does the harness is genuine?

Yes, the harness is genuine from case factory.

Does the harness is new?

Yes, the Case harness is new.

How can I order it?

I will send invoice with payment information via email.

How do payment?

We accept to T/T, PayPal, Credit Card, Western Union transfer.

What's the delivery time?

Stock products estimated 3-7 days.

Does the harness fit to my Case machine?

Negotiate, please send me your machine information.

Can you offer warranty for this harness?

Yes, we offer 1-3 months warranty.

Is the harness currently in stock for fast shipping?

Yes, the harness is in stock and can be shipped immediately
