Case Monitor Wire Harness KHN15050

KHN15050 is a cab instrument panel harness, it connect with cab monitor (display panel) KHR15202 or KHR10054 to the machine main harness and ECU controller KHR10036. It enables power distribution, data communication, and signal transmission between the display and the rest of the excavator’s electrical system.

Catalog Terms

In parts catalogs, this item may be listed as:

• HARNESS, MONITOR
• HARNESS, DISPLAY
• WIRE HARNESS, LCD
• HARNESS, CLUSTER
• DISPLAY WIRING HARNESS

Specification

1. Description: HARNES (cab monitor harness)
2. Brand Compatibility: Sumitomo, Link-Belt, Case (CNH)
3. Application: supply power and ground to the monitor (display unit / cluster)
4. HS Code: 854442100090 — insulated cable harnesses for cabin use
5. Range of application for KHN15050 wire harness

• Case excavators CX-B: CX130B CX160B CX180B CX210B CX220B CX230B CX240B CX290B CX300B CX350B CX360B CX370B CX470B CX800B
• Sumitomo excavators SH-5: SH120-5 SH130-5 SH200-5 SH210-5 SH240-5 SH300-5 SH330-5 SH350-5 SH360-5 SH380-5 SH450-5 SH460-5 SH480-5 SH700-5 SH800-5
• Link-belt excavators X2: 130x2 210x2 240x2 350x2 370x2 470x2

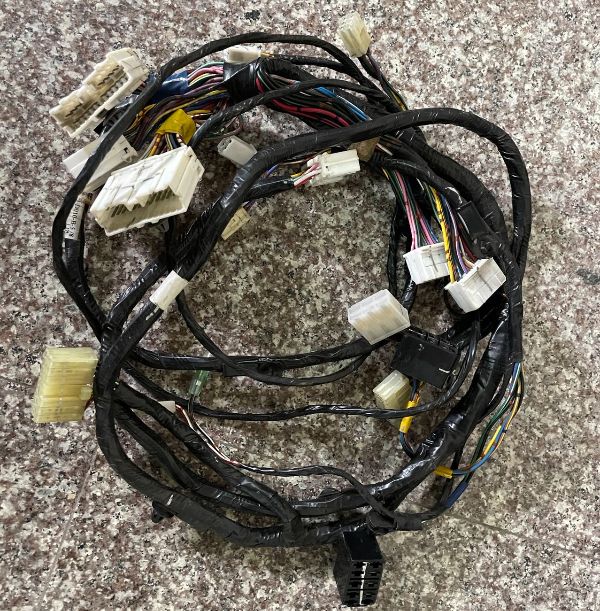

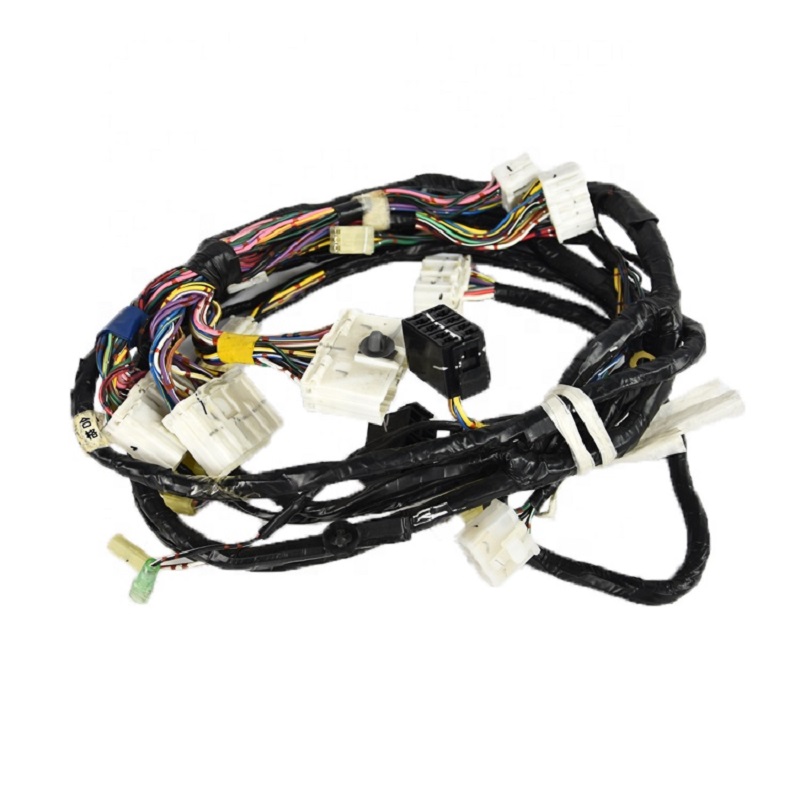

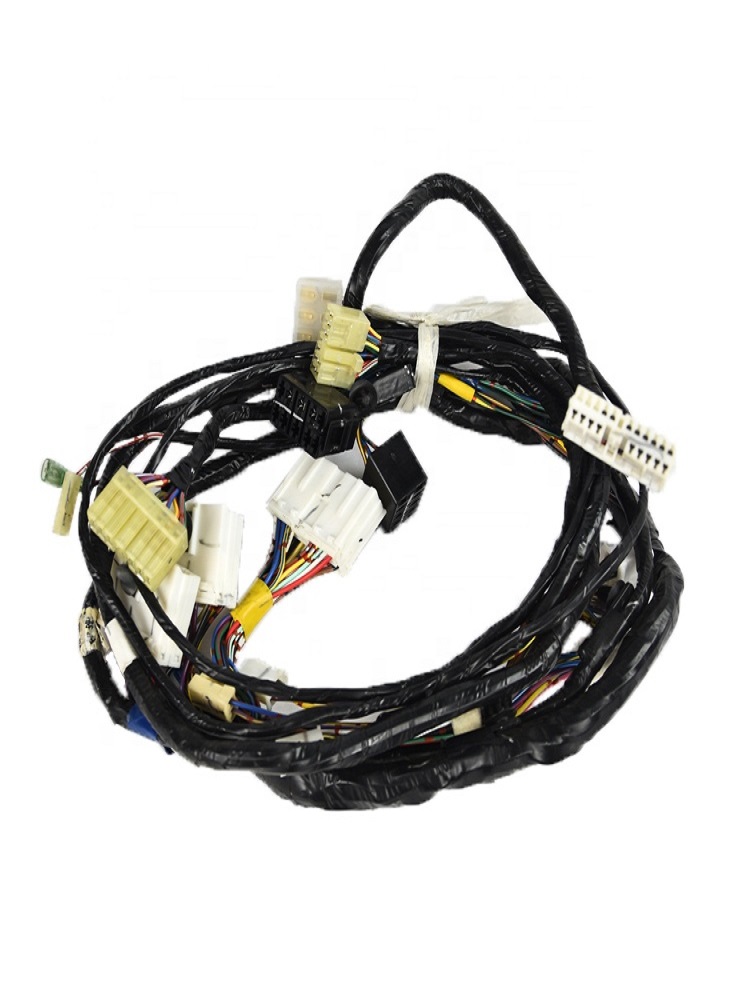

KHN15050 Harness Real Photo

FAQ

Does the harness is genuine?

Yes, the harness is genuine from case factory.

Does the harness is new?

Yes, the Case harness is new.

How can I order it?

I will send invoice with payment information via email.

How do payment?

We accept to T/T, PayPal, Credit Card, Western Union transfer.

What's the delivery time?

Stock products estimated 3-7 days.

Does the harness fit to my Case machine?

Negotiate, please send me your machine information.

Can you offer warranty for this harness?

Yes, we offer 1-3 months warranty.

What is the harness type?

It is excavator display panel harness which fit to Case excavator, Sumitomo excavator, and Link-belt excavator.
